well, i figured I might as well go with the gauge that comes with the LC-1. The other gauges are all black so this one fit the group best. Thanks guys....I'll be updating soon.

So I traded the blue hood for black rear seats + hardware and I ended up putting the vented hood on the NA for now.

I'll take pics tomorrow morning but I'm somewhat satisfied.

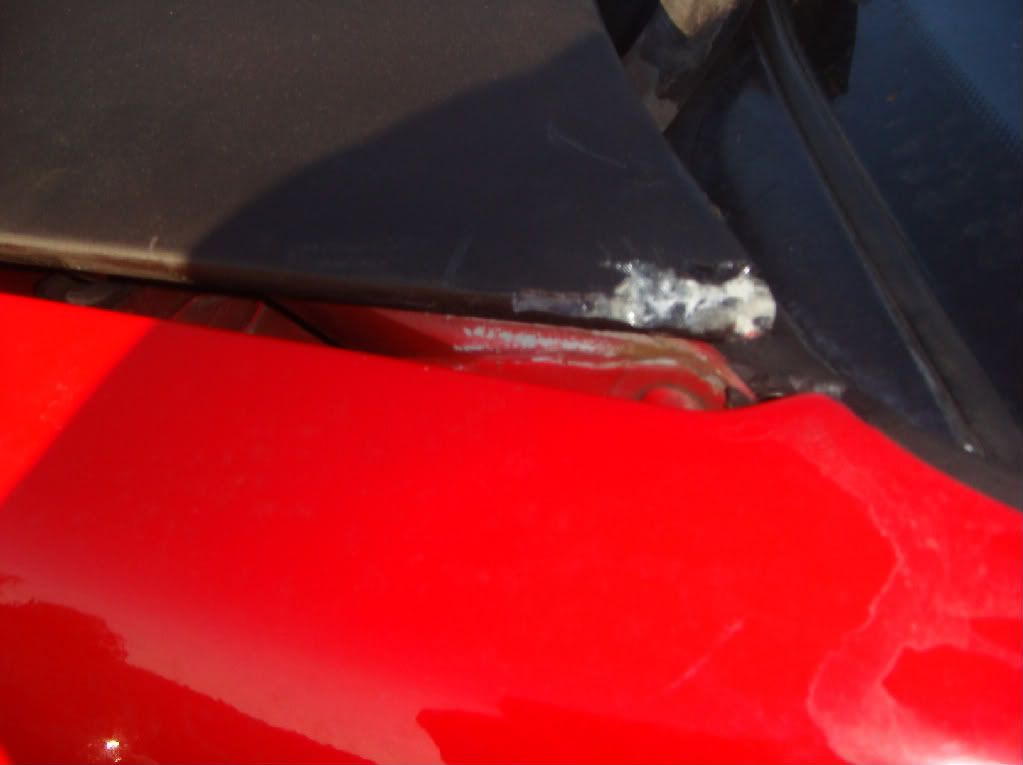

First it was chipped in the driver's side corner but that's not very important to me...lol, :dunno:

Now, the vent covers don't like strut tower bars.....it seemed to touch on the NA's bar. I removed it but the latch is too stiff so it wouldn't latch. I didn't want to slam it too hard (it FG) but I tried a couple of times. The spring is too old and worn and it's all stiff. I'll have to get a new sprint and then lube up the latch and see if it closes a bit better. I understand why they say to use Hood pins... I ended up removing the spring in order for it to latch overnight....It should be simple to open tomorrow.

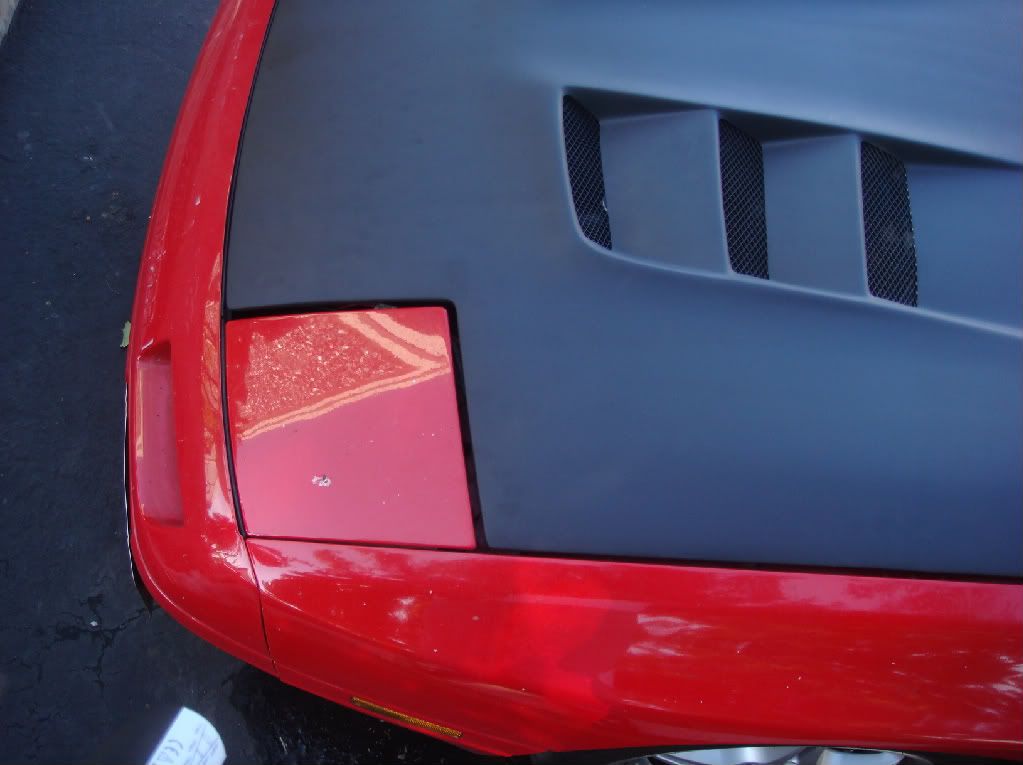

Fitment:

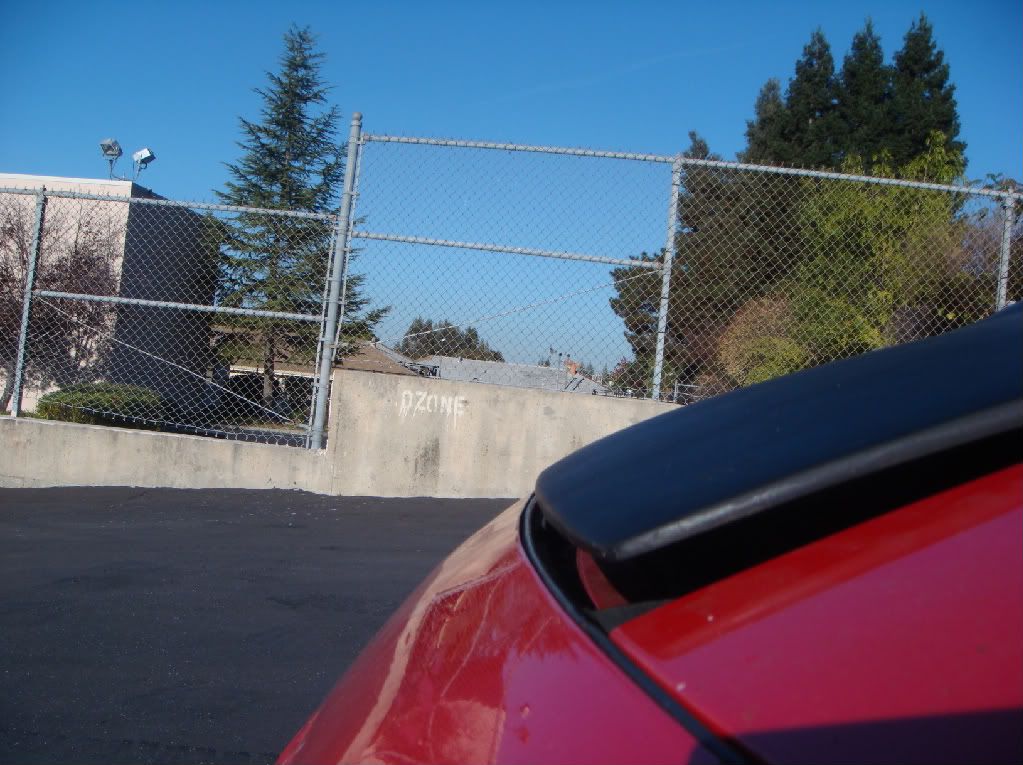

There is a gap between the fenders and front bumper but I thought it was acceptable/expected considering the price.

I installed it late tonight so I didn't get a chance to take pics and inspect it better so I'll update with pics tomorrow.

Now, I went for a drive afterwards and I left the car on afterwards. Hot air comes out of the second vents (from the front) when the efan comes on. I put the thermometer on the hood closer to the fender and it showed 68* then I put it directly behind the vent (on the FG) and it showed 109*

Mind you that was after driving and the efan had just come on.

Those are the first impressions......I'll update this post with pics and more critiques....

Been running around like crazy trying to take care of some setbacks in the past 2-3 weeks but I'm slowly gathering parts and painting some.

SineAutoProject came through with an INSANE HOOK-UP and I'm very happy.

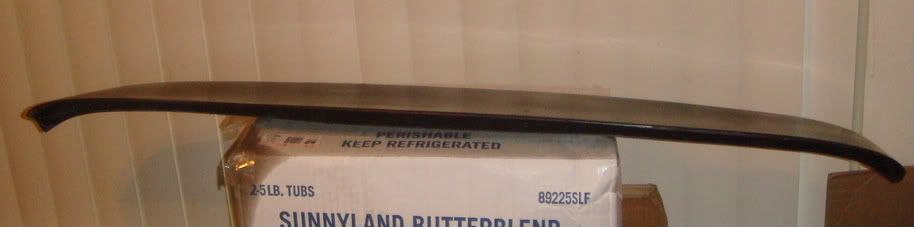

Here is the roof wing:
http://img.photobucket.com/albums/v1...grades/004.jpg

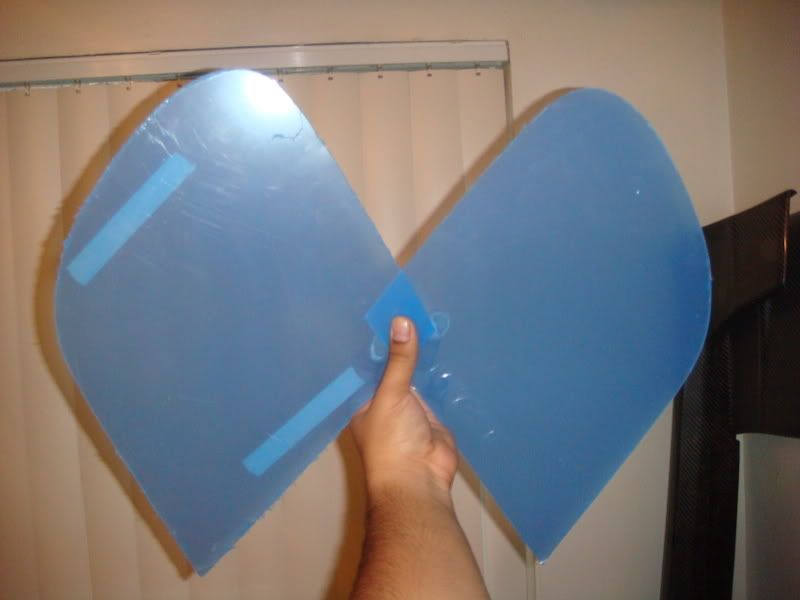

The headlight covers:
http://img.photobucket.com/albums/v1...grades/005.jpg

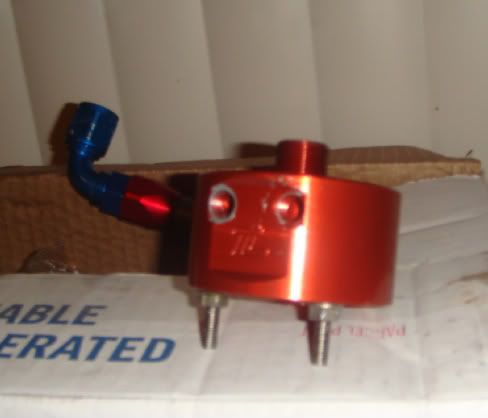

The pedestal and oil cooler lines from Comitatus:
http://img.photobucket.com/albums/v1...grades/009.jpg

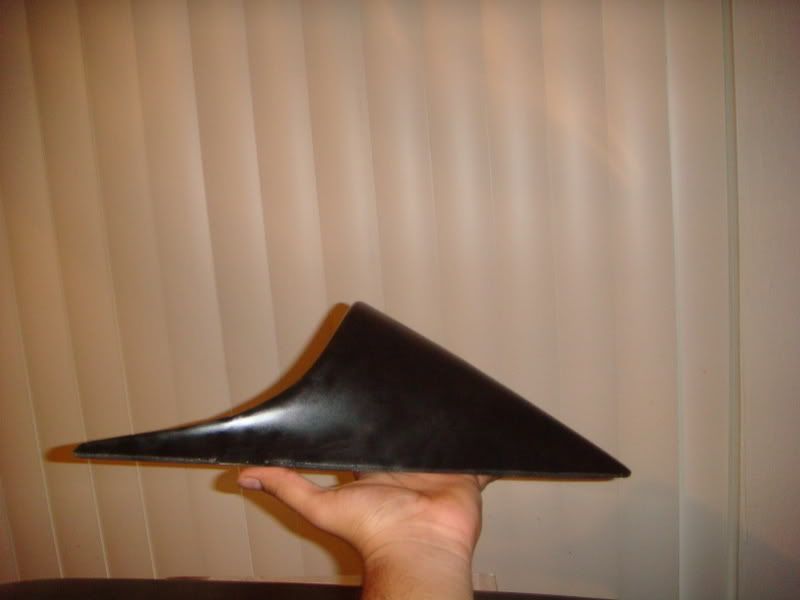

Here are the mirrors after the fist coat of paint:
http://img.photobucket.com/albums/v1...grades/006.jpg

well, the NRS sell for $1100 per rotor (IIRC) while the Iannetti can be had for much less (Mazdacomp says that members cannot divulge prices under threat of blacklisting or something like that).

Ceramics....The wave of the future....

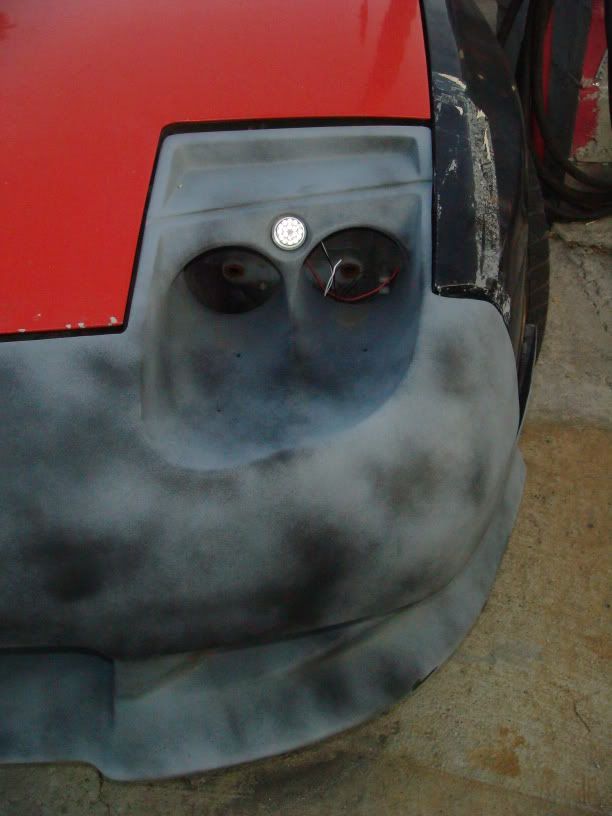

Turn signals came in:
http://img.photobucket.com/albums/v1...dProgress5.jpg

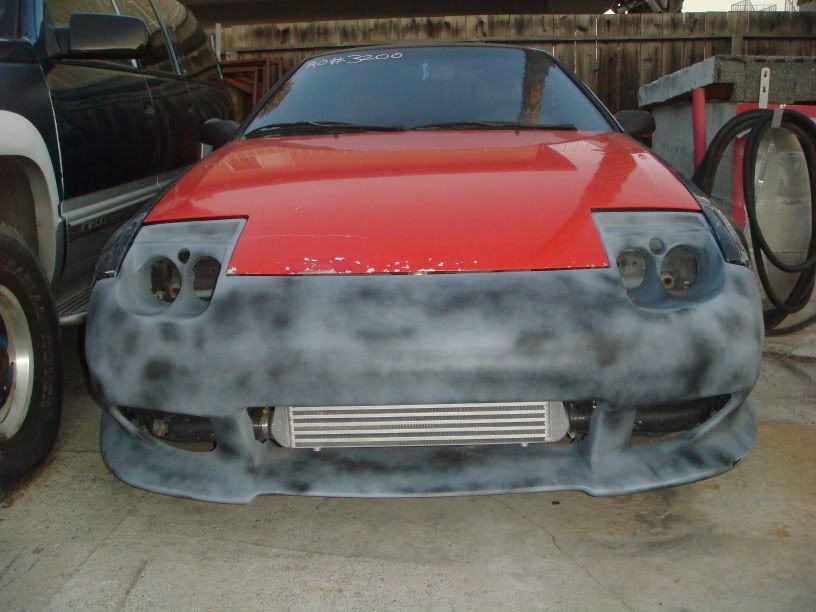

I still love the front end. It looks naked without the stock turn signals...
http://img.photobucket.com/albums/v1...dProgress2.jpg

looks good i need to see te turn signal in action.

side note you made me want to keep my sa and do a full restore on it . i wount bore you what ive done so far cause your a fc guy. but thanks for pushing me to keep the sa.

Awesome! I love the first gen (honestly, I'll drool over anything rotary!). How far a long are you? Are you still going to try to go with the Racing Beat muffler setup?

I'll have the brackets and wiring done on the light setup in a bit so I'll get some videos posted soon. I ALMOST put the FG hood on the black car yesterday but the wife seems kinda fond of it on her NA.

ive done re-speed front and rear coil over kit.re-speed front sway bar.new kyb gr2 struts shocks. custom ignition system 3 msd blaster 2 coils and 3 gm ignitors thanks to jeff 20b. all new bushings . new ball joints. racing beat header to muffler setup need to fix one leak in the stock pipe you use on the sa setup. removed gilmer pulley kit killed 2 alts f that shit right.

i need to do some body work drivers 1/4 panel and need to make a air dam since i cant find the parts for a sa. iam thinking of forming some caps for the front fenders and buying a sheet of 1/4 inch carbon fiber and bolting it to the them.ie on the uder side like a air splitter. strip the interior out some what, since iam going to put a street cage in, mainly to feel more safe. then i just need to figure out what iam going to do motor wise. my 12a runs fine when i took it off the road.but i want more power and need to figure out the best bang for the buck. if i can find some one to boost prep a rb holley i want to do that.if i cant find some one to do that ill go cadmen. i wish there was someone near by that could take my 12a apart and tell me if i should keep it or rebuild it if possible.

if i go cadmen i mite try to carb a TII motor with a cadmen to make my life easier. i dont want to have to pay for dyno time ect. since my buddy works with a bunch of carb guys that will help me out for free.
i allso need to clean up the egine bay. iam getting a tig welder soon thank god. so ill probly fix the body this winter and slowly build a motor.

nice, how do solid rear axle 1st gens handle after you modify them like that? I've never driven one.

We both need to do 1/4 panel work....I haven't been able to find a cheap replacement so i'm going to try and fix it...

As far as best bang for the buck? TII swap...200hp stock is fun.

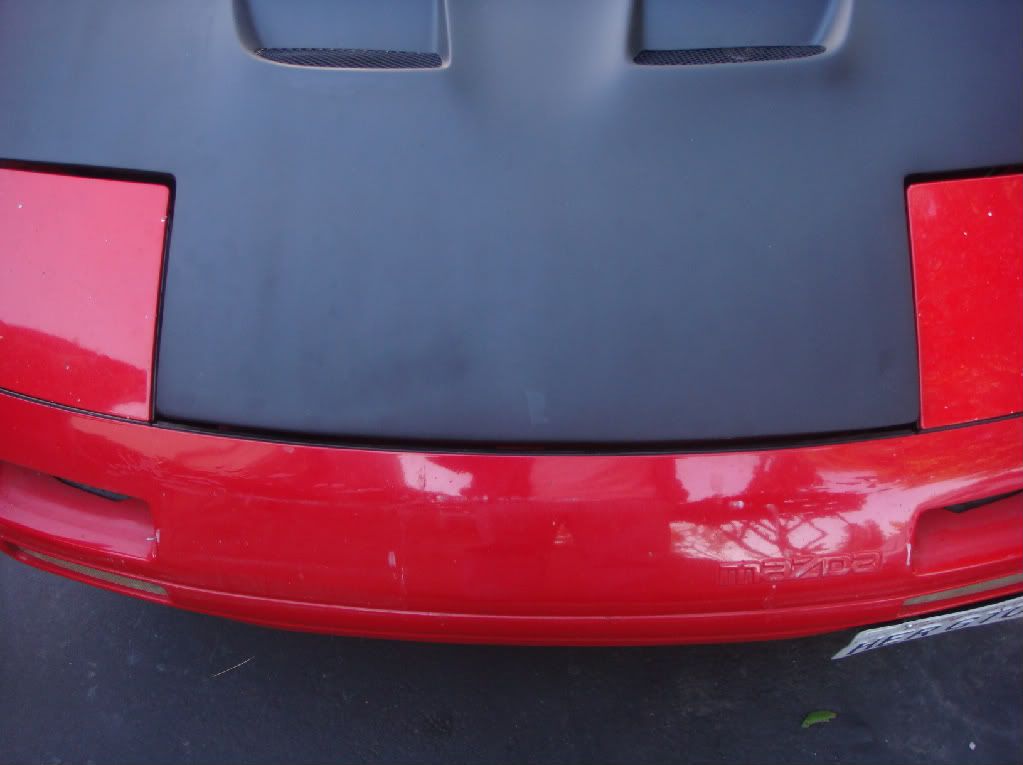

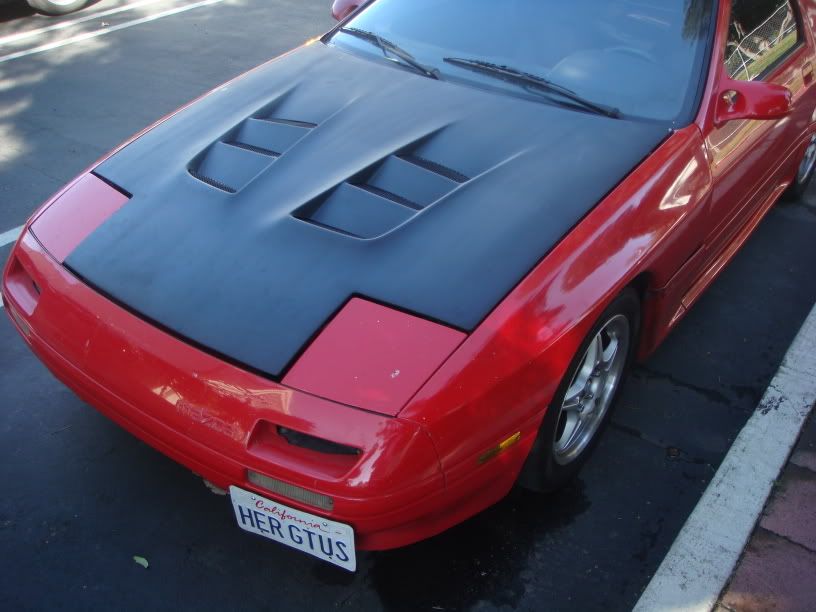

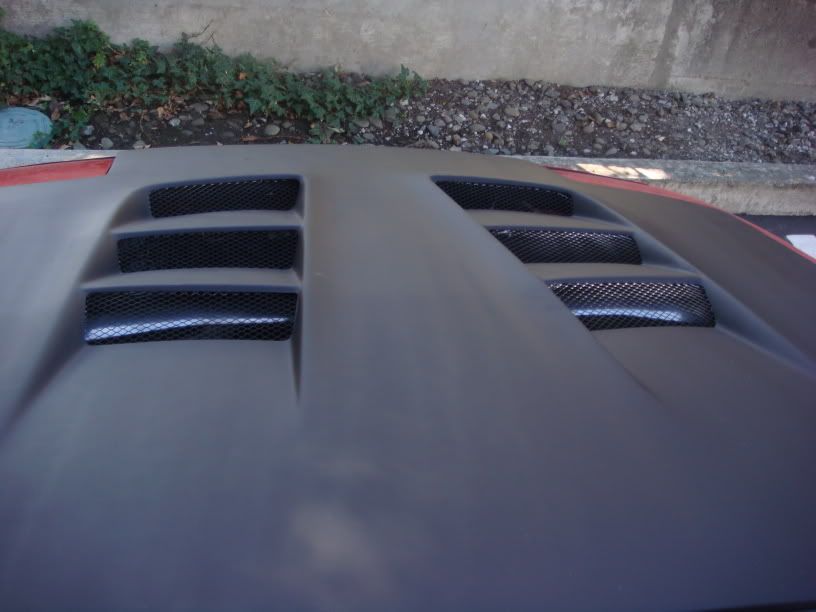

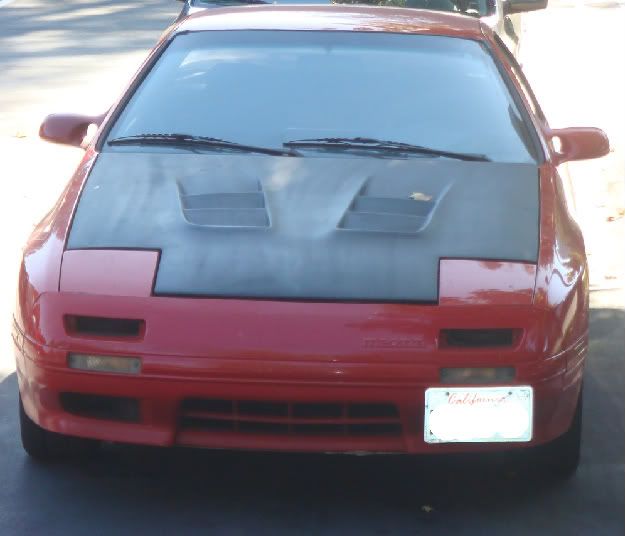

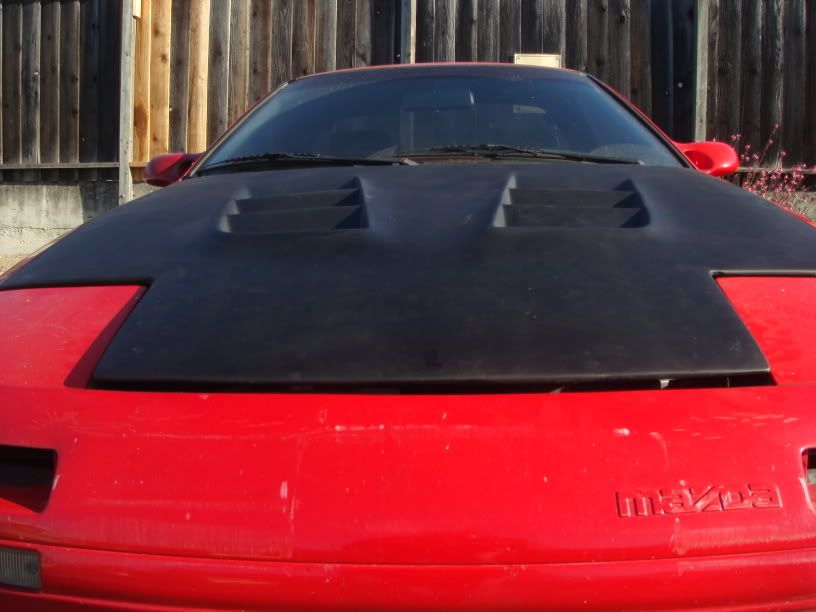

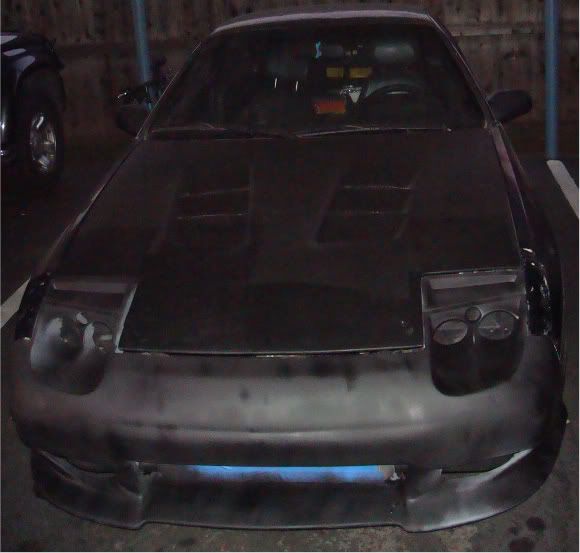

I installed the hood and i"ll be working on it some more tomorrow....:willy_nilly:
http://img.photobucket.com/albums/v1...ersion/091.jpg

I think this thread should change its title to "GTUs turbo, 400whp sleeper from behind" :)

Look'n good. I'm sure I've asked, but what hood is that again?

LOL, yeah, not so much of a sleeper anymore but I'll settle for 300HP at 10psi and take it from there......It's an AD9 hood replica for teh FC from www.keycompositesgroup.com

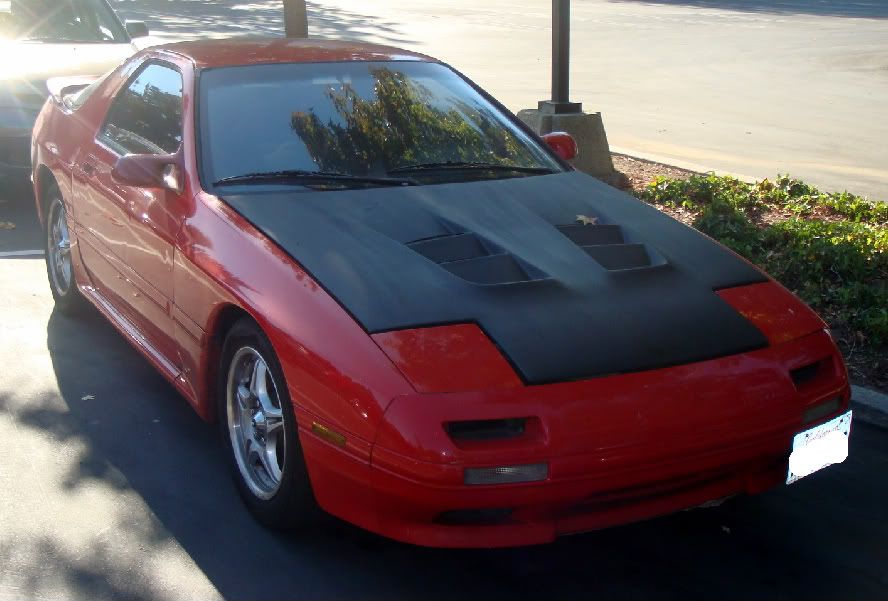

Here is a better pic.....updated March 30th

http://www.rotarycarclub.com/rotary_...1&d=1238797785

BTW, the NEW (aftermarket) interior I bought from Ebay is a perfect fit. I'll be posting about that in a while.

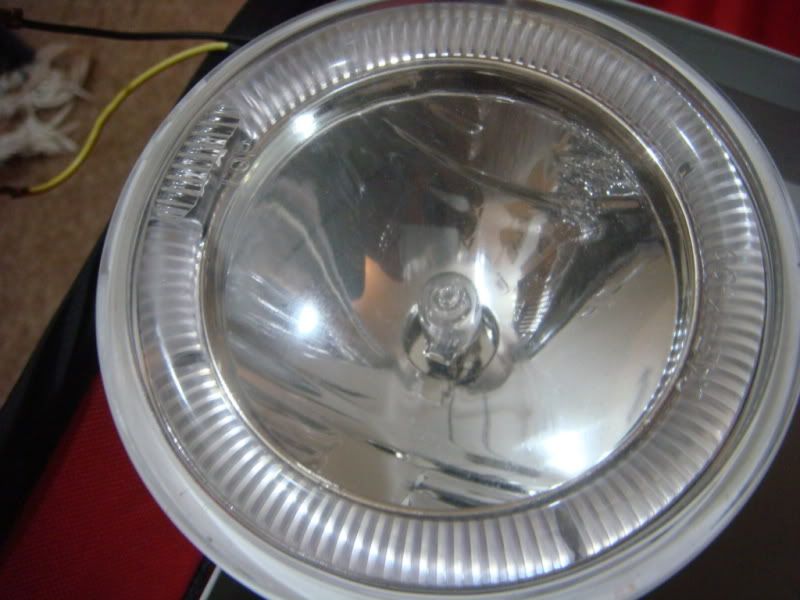

Started to convert the headlights to HIDs....6000K....

It's been cold and rainy so no work on the car so I thought I'd get something else done.

Pics in a sec

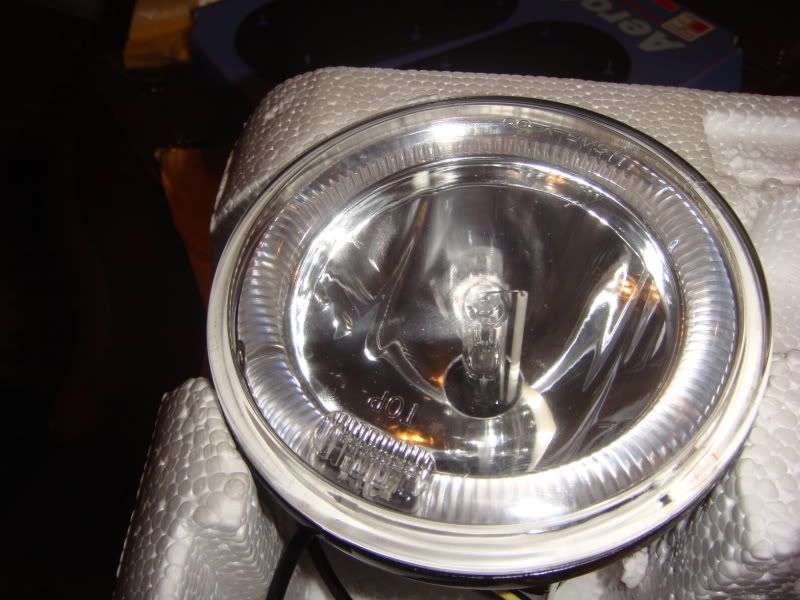

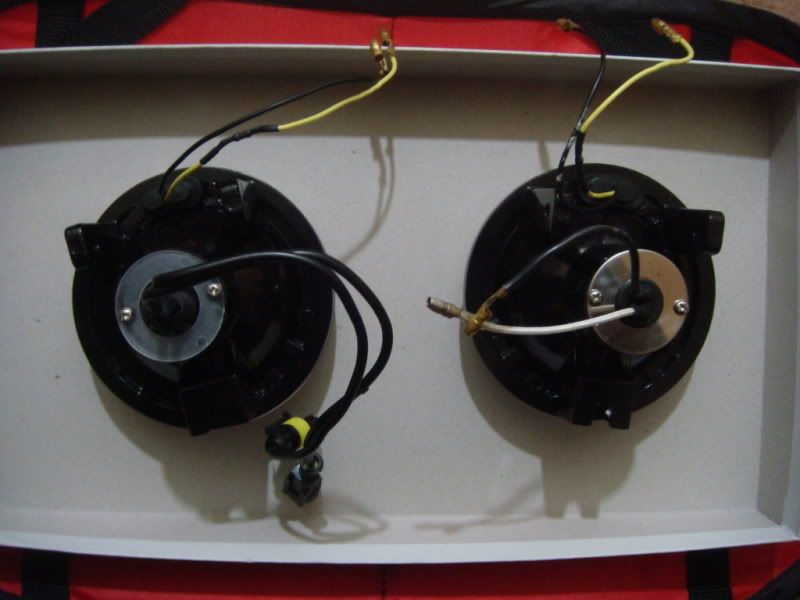

HID on the Left
http://img.photobucket.com/albums/v1...ades/006-1.jpg

http://img.photobucket.com/albums/v1...grades/007.jpg
http://img.photobucket.com/albums/v1...ades/005-1.jpg

Quote:

Originally Posted by Phoenix7 (Post 62350)

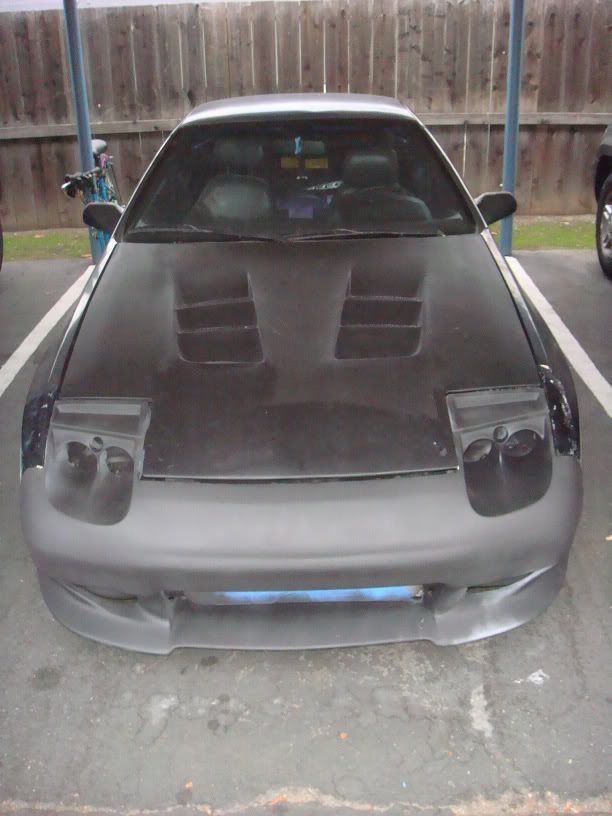

Here is a better pic.....
http://img.photobucket.com/albums/v1...ersion/002.jpg

BTW, the NEW (aftermarket) interior I bought from Ebay is a perfect fit. I'll be posting about that in a while.

I got that hood, I keep taking the rain guards in and out and the screw holes for them are not holding up, but I prob will just always keep them out when I get it running again.

I wanna see the shots of the interior, I've always been tempted by it.

Yeah, I had to take the covers off since they didn't clear the strut tower bar so I don't know about them not holding up.....I've even driven in the rain without any issues.

As far as the interior, I'm waiting on my seats...as soon as they come in I'll install the new carpets, steering wheel and whatever else I need....

nice build keep the pics coming

slowly chugging along....friend sent me this pic of the car right before the front end swap.

Izzy's cars, Mine and Brooke's....Miss the NA.
http://s3.amazonaws.com/twitpic/phot...bMDhs2XpFqE%3D EDit...don't know why pic won't show up.
http://web1.twitpic.com/img/13961296...294f0-full.jpg

mirrors might be for an AE-86 I know the FC mirrors fit on it... take some pics, maybe you can make them work?

Pics? I gave up on my car for a while. I'm concentrating on building up my TII instead.

no new pics...nothing interesting happening....new FMIC kit is in, turbo is in, just lagging, trying to get the wife to give up her blown FC so I can rape it for parts for this car....but she can't bring herself to give up her car.

Bought seat rails but they're for 9.5" mounts while my seat is 11.5" and they want 20% restocking fee...dash is out....

slowly progressing...I want it to be primered adn ready to roll for 7stock but :dunno:

I bought some fenders and I spent yesterday and some of the afternoon primering and wetsanding...I have to adjust the FG without breaking it so I can get everything to fit right. Gonna spend all day tomorrow getting the rest of it put together and then the haltech.

Need a few other things but it's all about putting it together now.

Any tips on adjusting the FG? I've already damaged my headlights by being careless. Been busy today.

Here are some pics of it all mocked up:
http://www.rotarycarclub.com/rotary_...1&d=1248131063
http://www.rotarycarclub.com/rotary_...1&d=1248131063
http://rotarycarclub.com/rotary_foru...1&d=1248130466

Washing and finishing the front end today. Check out the pics above and let me know what you think.

EDIT: here are some quick pics after the hot shower
http://rotarycarclub.com/rotary_foru...1&d=1248210282
http://rotarycarclub.com/rotary_foru...1&d=1248210282
http://rotarycarclub.com/rotary_foru...1&d=1248210282

sorry about the pic quality....just for my records. BTW, the hood is not shut all the way since the bumper needs to be adjusted a tad more.

I'm desperately working on finishing up the exterior so I can get it to Sears Point Raceway's Exedy booth during Formula Drift (no drifting or racing for me yet...too much work left) but it's gonna be tough even getting the booth!! Competition is an LS7 FD, which I assume is in show-quality-condition.

1. keep messing with the fenders so the front end fits.
2. finish up cleaning up the engine bay and rewire everything.
3. Finish up the interior and install seats.
4. Install Haltech
5. Tune.
6. miscellaneous work like custom throttle cable, smalled brake master cyl., vac lines, boost controller and other electrical work....you know, the little things that make you wanna hurt someone.

what's that wire running across the engine?

I do but not for long...Picked up some aerolatches a while back...as soon as the front end and fenders are lined up to the hood I'll install them. I did the best I could to prep it for the body work.

Took off the TB and UIM again...this time I'm gonna to the TB mod and remove emissions a la RETed's and Rotaryresurrection's sites. THen it's all coming back on for a final job: Haltech.

Edit: had to bathe the bolts in WD40...hope they come out so I can remove the thermowax and continue the mod. wish me luck.

wound up buying a tool so I would stop stripping screws. TB plates have been removed but no porting yet.

Gonna throw it in a parts cleaner along with the UIM tomorrow and then remove the rats nest ala RotaryResurrection.

This is next: THANKS stylEmon
http://rotarycarclub.com/rotary_foru...2&postcount=31

I have everything almost ready for the haltech, just dunno where to start.

New trick:
http://www.asashop.org/autoinc/may2003/techtotech.htm

fuel pump rewire info

I found this in one of my folders about car stuff...I don't remember where I got it from but if you remember then link to give props.

Quote:

Why rewire the fuel pump?
- Even on a car with a new alternator, new battery, new battery terminals, and
clean electrical connections (mine) I saw as low as 10v to the fuel pump with a
load on the system (lights on, stereo cranked, heater on, etc.)
- The fuel pump should, under boost, be seeing at LEAST 12v. Reduction in
voltage=reduction in fuel flow=bye-bye motor.

Considerations when rewiring the pump...
- First off, it should operate as normal. You turn on the key and go - no extra
switches, etc.
- The fuel pump resistor circuit should continue to work. This drops the fuel
pump voltage to 9v at idle and cruise to improve fuel economy.
- The safety switch in the air flow meter should continue to work. The airflow
meter, when closed, turns off the fuel pump. So, if you roll the car, you won't
be pumping gas out of the car at 30-40psi making a big fireball :).

OK, so how do you do it?

You'll need -
- a 12v automotive relay (Radio Shack)
- about 15 feet of 12 gauge wire
- an inline fuse for the 12 gauge wire
- about 20 feet of speaker wire (you need two wire runs to the back of the car,
and speaker wire has 2 wires)
- various crimp-on connectors (to connect to the relay and positive battery
terminal)
- electrical tape

OK, first off let's run the wire. The speaker wire needs to start at the airbox
location in the engine bay and end by the driver's side rear shock tower. The
12 gauge wire needs to come from the postive battery terminal to the same spot
(don't hook it up yet! :) Hook the inline fuse between the positive terminal
and the 12 gauge wire - you always want the fuse close to the battery. I used a
15 amp fuse, and it seems to be adequate.

Next, it's time to move the resistor and relay. Remove the airbox. There's a
metal bracket that has a relay and a aluminium box that looks like a heat sink.
It connects to the wiring harness with a large round white connector. Inside
the connector should look like so -

__--__
| - - - |
| - - - |
_______

Let's label these wires, as per the shop manual. Diagram below is on the
relay/resistor side:

__--__
|E C A |
|F D B |
_______

OK, cut the connector off the wiring harness. Leave enough slack on both sides
of the cut - we'll be re-splicing the connections in. Connect the speaker wire
to C and D.

So, now you've got your resistor and relay with a cut off connector. Move to
the back of the car. Remove the driver's side rear speaker assembly and the
plastic trim above where the jack goes. Pull the covering on the side of the
hatch area forward. On the side of the shock tower closest to the rear of the
car is a wiring harness with a white connector. This is the connection for the
fuel pump. There's 4 wires there - 2 for power and ground, and 2 for the fuel
level sender. On the fuel pump side of the wiring, the two topmost thicker
wires are power and ground. I believe power had a white stripe and ground is
just black. You might want to test it first and make sure you've got the right
wires. Cut both of them about 6 inches down from the connector - you might need
to cut off some of the covering around the wires. Time to hook up the relay.

Here's what you want to do - use the power lead that normally comes into the
fuel pump and the ground on the car side of the wiring harness to turn the relay
on and off. Run the 12 gauge wire from the battery terminal into the relay.

Time to wire up the resistor relay. Take the wires from terminals A and E and
splice them together. Take the wires from terminals B and F and splice them
together. Attach the speaker wire you ran from the front of the car to
terminals C and D. Run a wire from the relay (the opposite terminal that the 12
gauge wire is on) and attach that to terminals A and E that are spliced
together. Run a wire from the spliced terminals C and D to the fuel pump
positive lead. You can ground the fuel pump separately or just attach it to the
same ground wire it used in the past on the harness.

OK, go back to the front of the car. There should be 4 extra wires where you
cut the resistor relay off. Splice the wires that were on A and B together, and
the wires that were on E and F together. This lets the signal from the main
fuel pump relay travel back to the fuel pump area, and it activates the relay
there to bring the new 12 gauge wire online with the pump.

Time to test it. Get a jumper wire and jumper the fuel pump check connector -
it's a yellow two-prong connector on the passenger's side shock tower in the
engine bay. It might be buried a bit, so keep looking. After jumping the
connector, turn the key to "On" (don't start it) and go back to the hatch. You
should hear the fuel pump running. If not, check your wiring for good
connections.

Yes, this is a VERY complicated procedure, and you have to keep a lot of things
straight. If you have a shop manual, turn to pages 4B-70 and 4B-71 - there's a
really nice diagram of the whole setup there, along with a diagram of the fuel
pump resistor relay. This job took me just a Saturday afternoon. I haven't had
a chance to see what kind of voltage I'm getting yet, but I know it's got to be
better than before :).

The prinicpal of the idea is moving the fuel pump resistor relay near the back
and splicing a relay carrying a REAL voltage into the equation. This method
keeps all the factory safety features (air flow meter cutoff, check connector,
etc.) It also allows the resistor to function properly. When the relay for the
resistor is open, all the current goes through the resistor and is dropped to ~9
volts. When the relay closes, it makes a path with no resistance through that
part of the circuit, and we all know that electricity takes the path of least
resistance.

If any part of this is unclear, please let me know. It's a pretty complicated
procedure with a lot of wire-deciphering, and I think I got the gist of it down.
This procedure is VERY necessary with upgraded fuel pumps and fuel pressure
regulators as Bruce Lewis found out - the stock wiring just can't deliver enough
current. Hopefully this $10-20 mod will help save some modded engines out
there! :)
