I think I have an '87 alternator that you could have cheap (not that they aren't all over eBay anyway).

I got it from a friend for my '86, then i discovered that my voltage issues were from the AAS. I don't know the condition personally, but I doubt that it is hurt - he said it was fine.

It really is amazing what will make vibration. I had a mud wasp nest on the inside of my harmonic balancer once that made the engine in my mud truck vibrate terribly (360 Small block Dodge).

Quote:

Originally Posted by NoDOHC (Post 100929)

How much shipped to

residential address, 61801, Champaign, IL?

ok, so i figured out my heater issue, i swapped logicons and it all worked fine, another easy fix, but i cut the shit out of my thumb in the process.

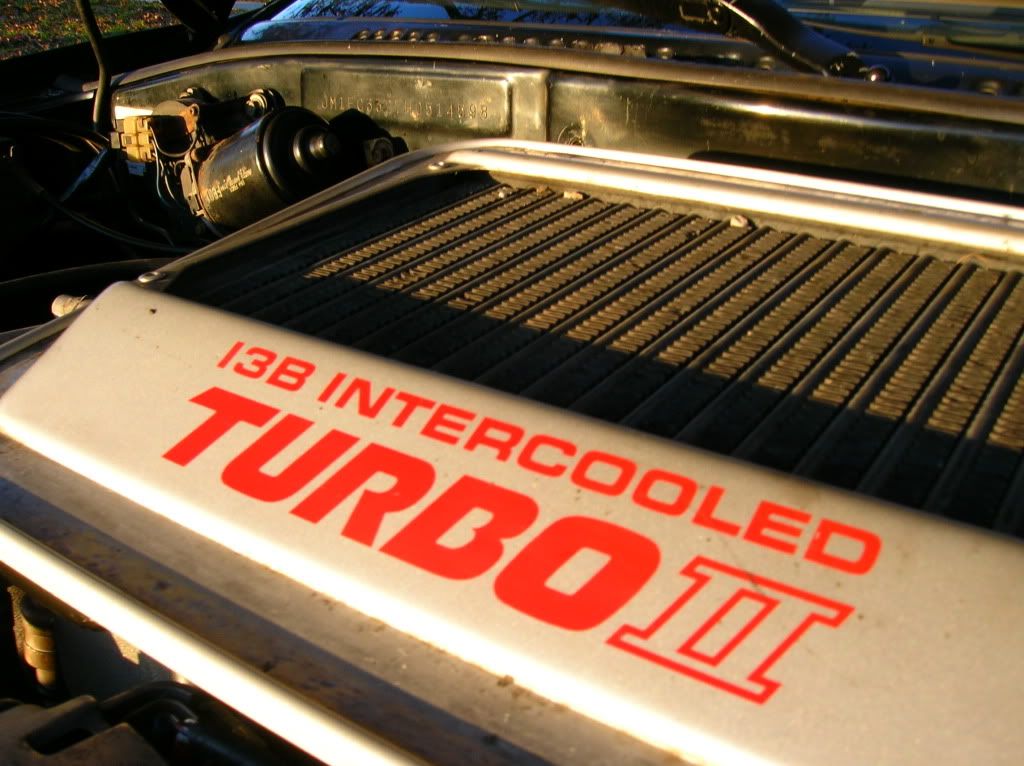

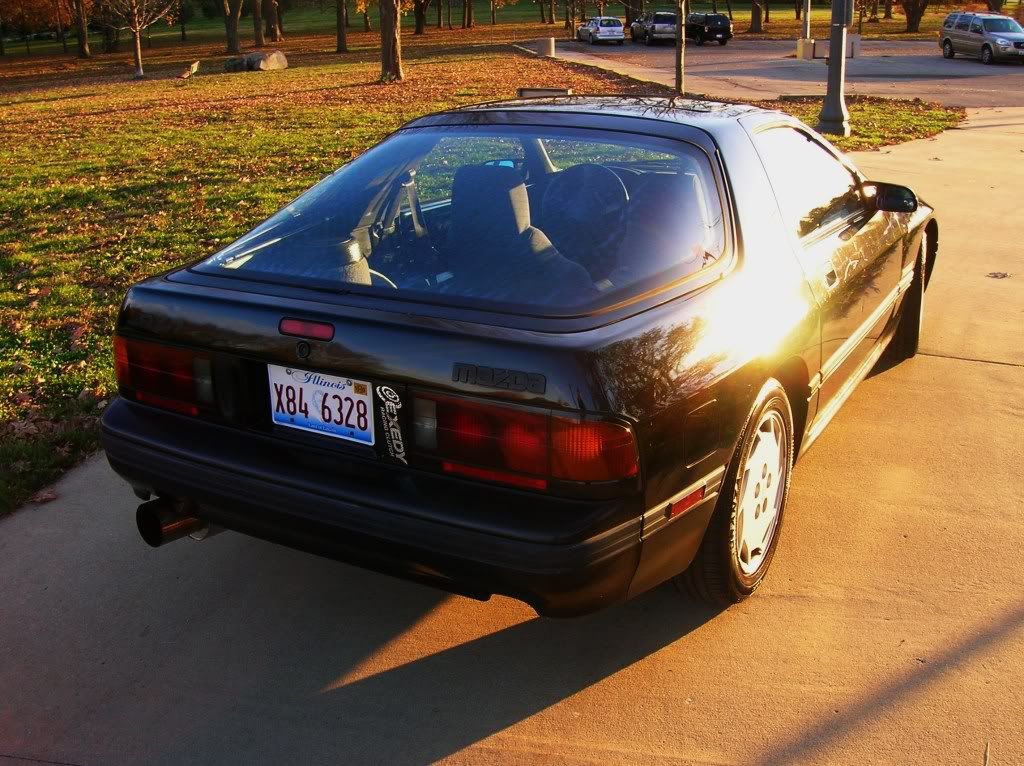

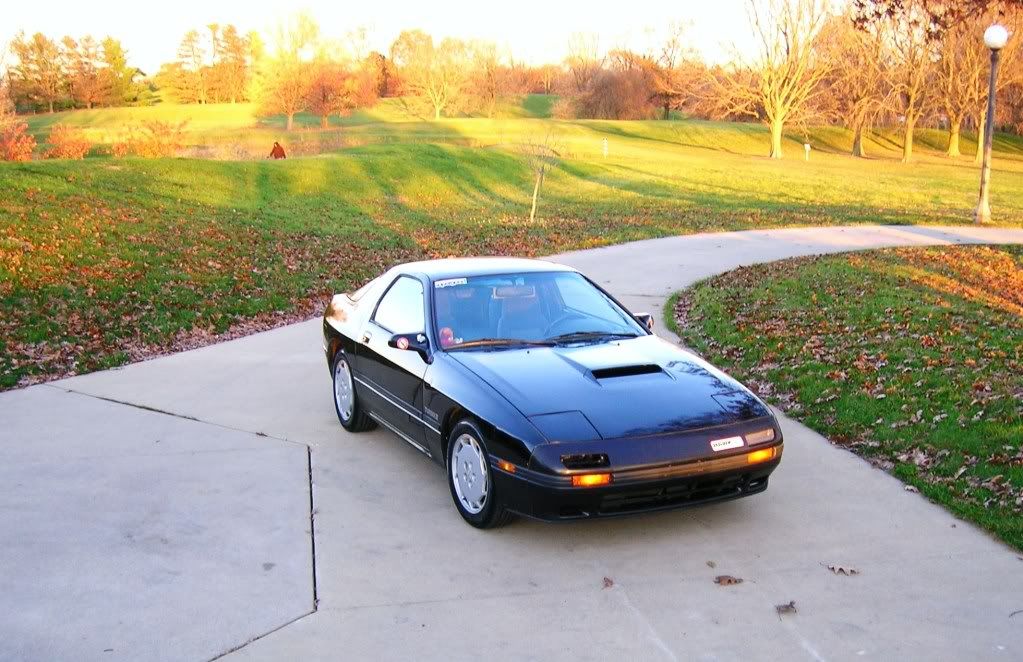

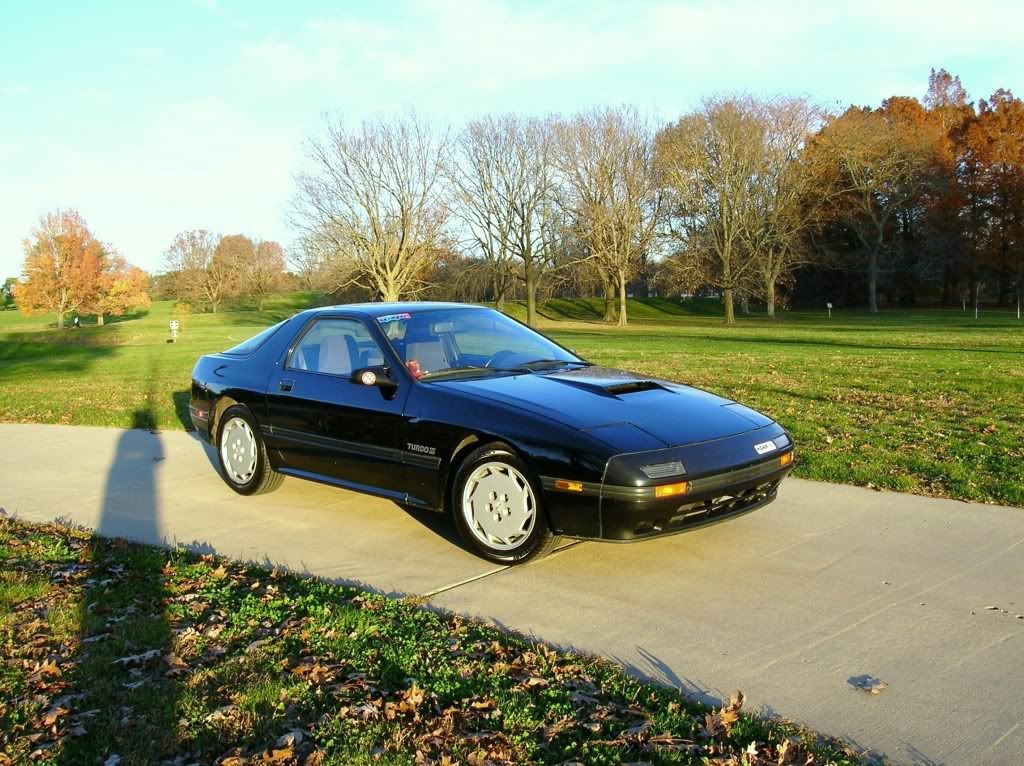

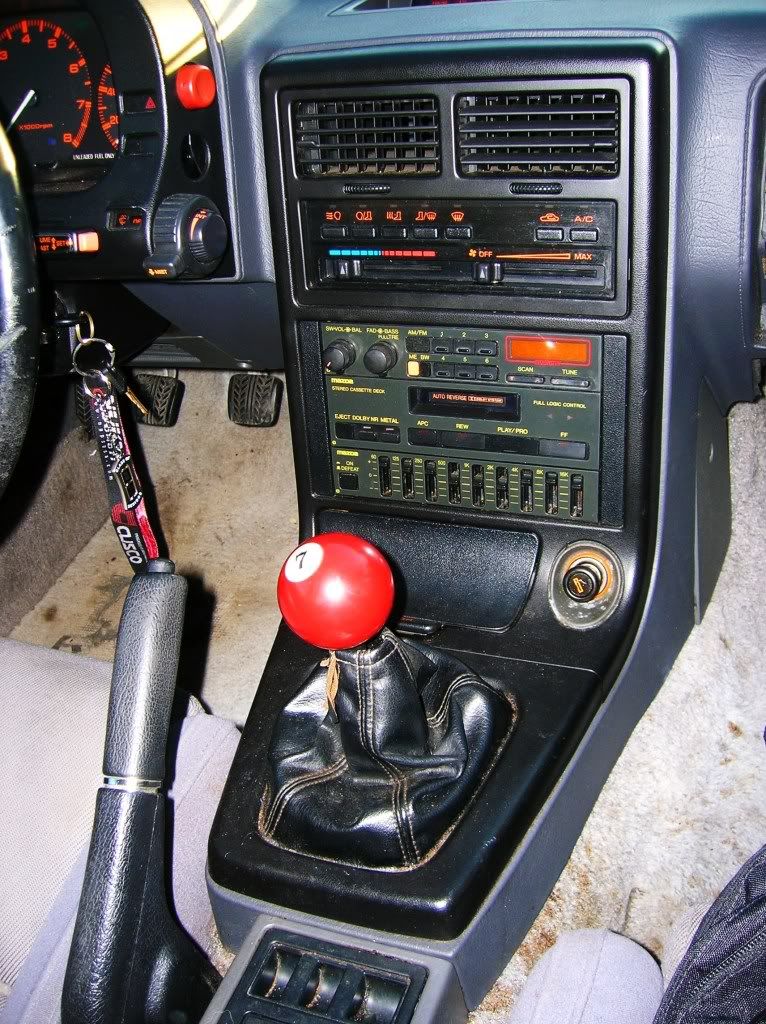

I got some (now outdated since I swapped in the s5 surround) pictures of the car, here it is:

http://i151.photobucket.com/albums/s...0II/myfc01.jpg

http://i151.photobucket.com/albums/s...0II/myfc02.jpg

http://i151.photobucket.com/albums/s...0II/myfc03.jpg

http://i151.photobucket.com/albums/s...0II/myfc04.jpg

http://i151.photobucket.com/albums/s...0II/myfc11.jpg

http://i151.photobucket.com/albums/s...riftmonkey.jpg
http://i151.photobucket.com/albums/s...0II/myfc09.jpg

Quote:

Originally Posted by Phoenix7 (Post 99806)

welcome to teh boosted world....I doubt you'll ever go back to NA.

i dont fully agree with that having gone back to NA, lol

I'll never go back to n/a..... unless I add an extra rotor ... or two :suspect:

Nice build thus far, looks pretty thorough. Take it from me though... don't half build things. Meaning, don't drive the car with the exhaust only half done 'cuz it'll never get fully done. Put her in the shop and don't drive her until it's 100%. You'll be amazed at how fast that motivates someone to dominate a PJ

Well, I just sold my vert!

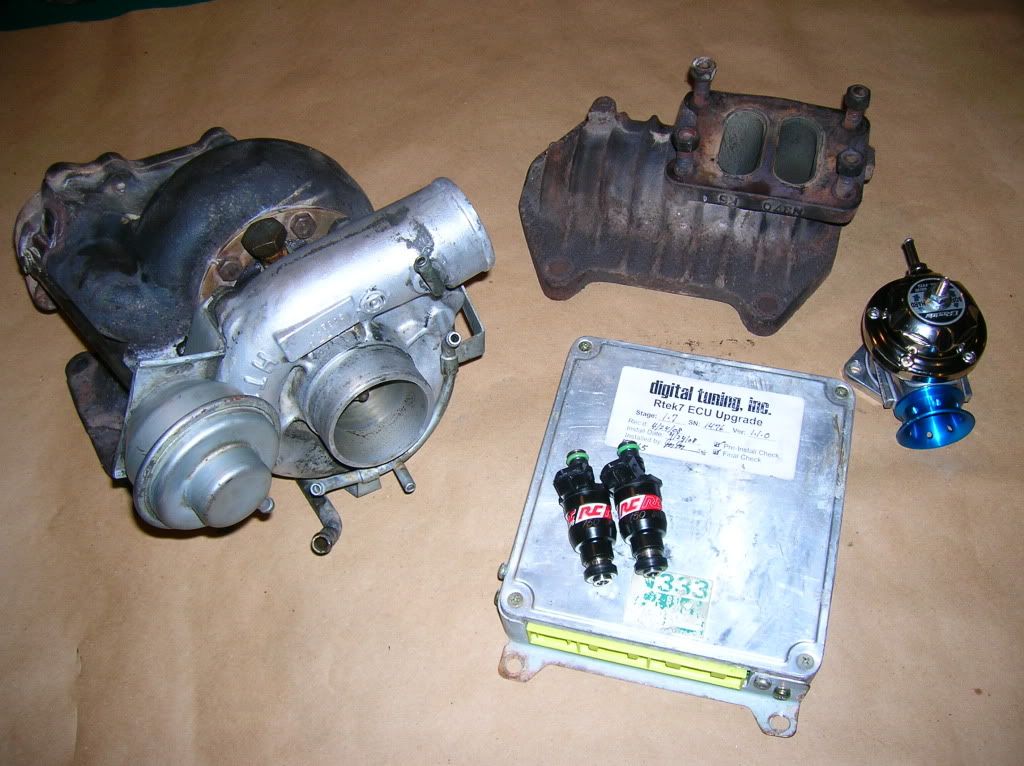

I ended up trading the guy for these parts:

S5 turbo (ported)

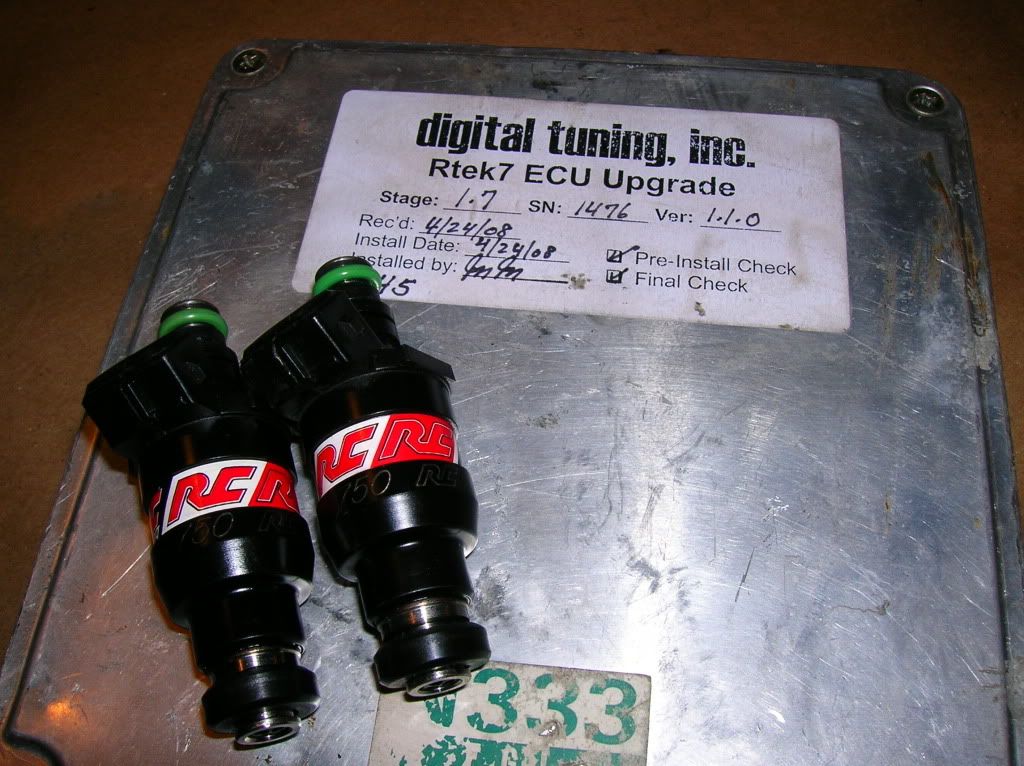

RTEK 1.7 ECU

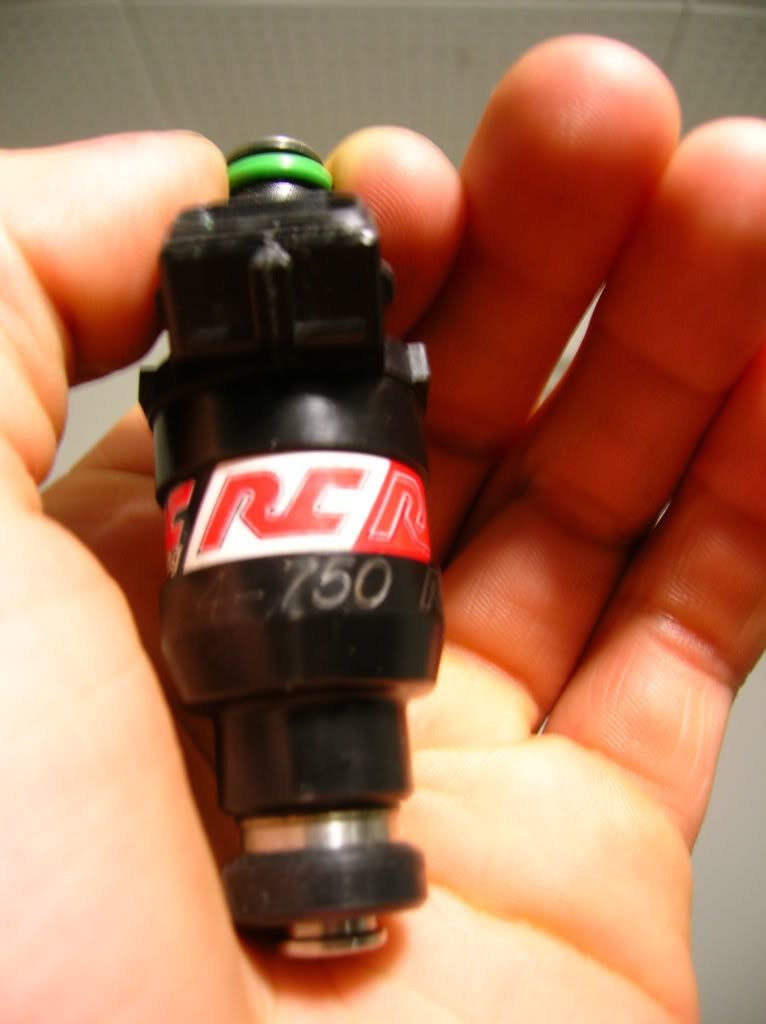

RC 750cc injectors

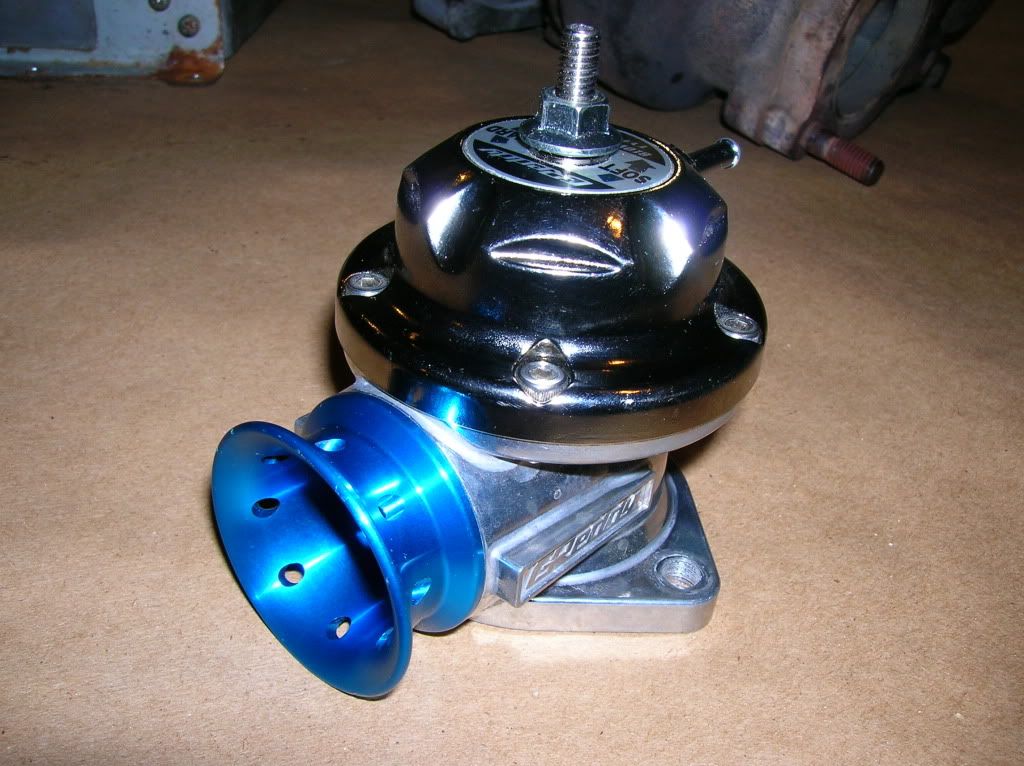

Greddy Type RS blow off valve

Then, I ordered some modded steering knuckles from DCWFC3S on the evil forum. These give way more angle when you turn. The benefits are better maneuverability in tight spaces like parking lots, and the ability to countersteer further before spinning out. The FC has a very low angle of steering at full lock, so if you go sideways, you can easily spin out. With these, I can drift all day long and not have to worry about hitting full lock.

Here's a pic:

http://c2.ac-images.myspacecdn.com/i...1f0a5bae75.jpg

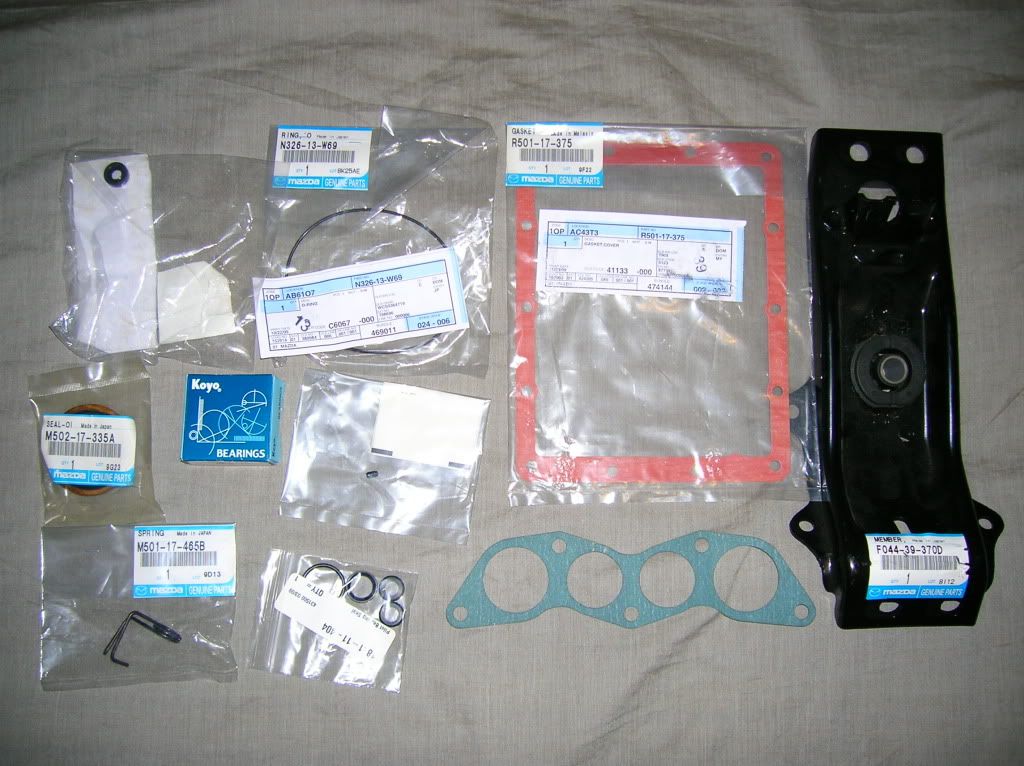

And I just recieved some stuff from Mazdatrix as well:

Rear transmission cross member (broken center bushing was causing high rpm vibrations)
Exedy Stage 1 Street clutch kit (Clutch disk, pressure plate, Throwout bearing, pilot bearing, etc)
Rear main seal
Transmission driveshaft seal
Turbo transmission pan seal
Speedometer gear oring
Spedometer gear seal
OMP o-ring
New intake gaskets
transmission shifter centering spring
MAP sensor restrictor pill (removed emissions)

All these parts ended up totalling me $180, plus $80 for the clutch kit, and on top of that, the OMP oring and rear main seal didn't even get here with my order, had to call M.T. and get them shipped overnight delivery, lol.

Pics of the goodies to come soon! :D

Nice! :icon_tup: Looks like a clean car. I like how you're tying up all the loose ends too (leaky gaskets, etc). Nothing's more annoying than a car that leaks every fluid all over the place :rofl: Good job so far.

/\ no shit, right? The lower end of my engine, crossmember, and bottom of the transmission looked like they sat in an oil field/ swap for a few years, haha!

I should have put new lines and an o-ring on the OMP the first time I had the intake off but I didn't feel like it. Now that I got a new clutch, I decided to do shit proper.

Gotta port it more, might as well get it as big as you can so you don't have to pull it out again. That's precisely what happened to me.

Yeah man, port that shiat more. Mine is all the way out to the the edge of the flapper. No boost creep for me!!

Hey guys, just FYI i didn't do the porting myself, it has been done before I recived the turbo.

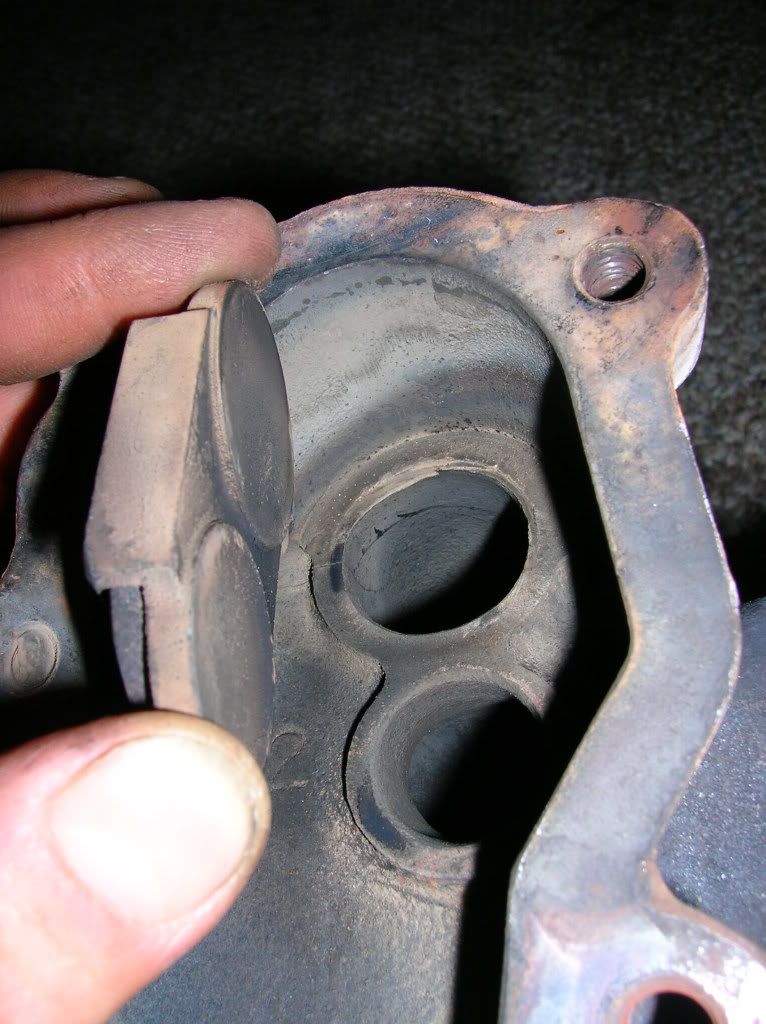

There are a few things i dont like about it, first, it has some cracks in it, second, two bolts on it are snapped. As far as porting this one bigger, I would need to figure out a way to make sure that the valves that close off the ports do not move too much, right now they are very "sloppy" when they are over the holes.

I am going to pull the transmission next weekend, my friend is letting me work in his heated garage, which is super mega awesome.

As far as the charging harness, I pulled mine out, and de-loomed it. I found a few things like corrosion and stuff, but overall, I dont see any significant problems with the wiring.

I have been looking at the BNR turbo rebuilds the other day, and seeing as my S5 turbo is in bad shape, I think that I will invest some money into getting it rebuilt before I install it.

Well, it is now officially 2010, and a new year brings new mods!

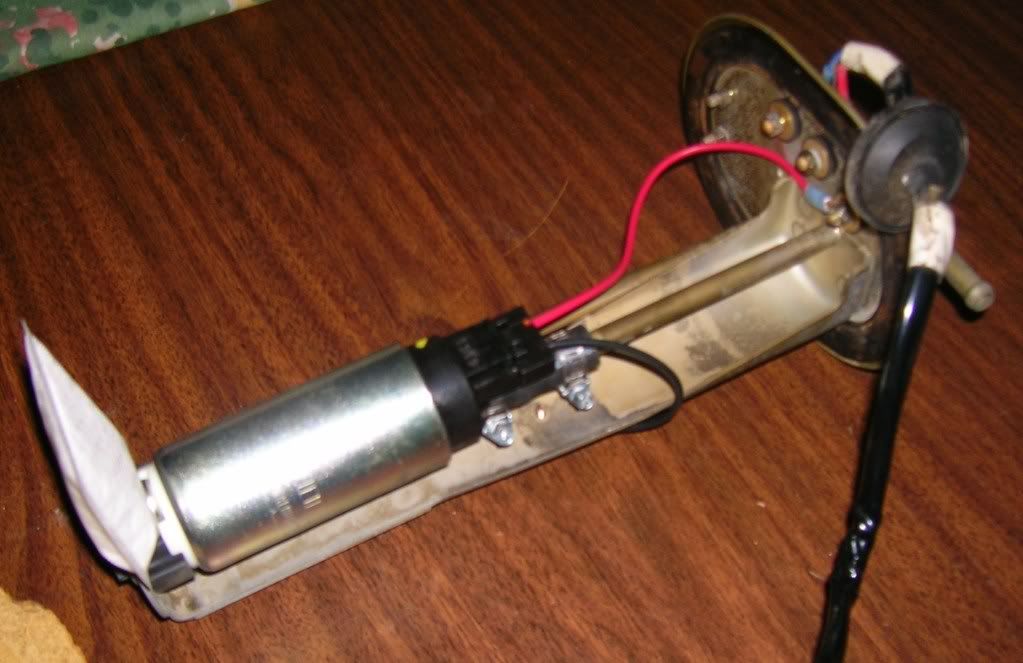

I got a Walbro 255lph pump, then went to install it, only to find out that my fuel tank has a bout a 2cm layer of varnish crud on the bottom of it. I got the tank boiled and sealed up with an epoxy liner. I also discovered that the reason my fuel gauge does not work is simply because I do not have a fuel level sender installed on the FP mount.

Pics:

http://i151.photobucket.com/albums/s...I/DSCN5163.jpg

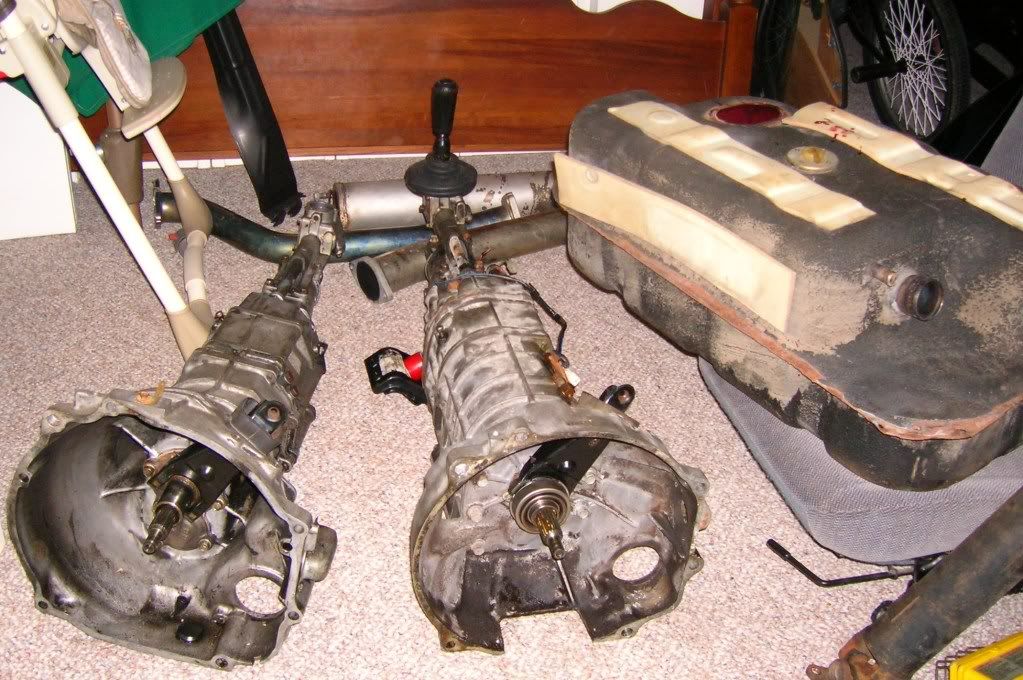

Showing the Tank, and the transmissions I have: Turbo II on the right, N/A on the left.

http://i151.photobucket.com/albums/s...I/DSCN5182.jpg

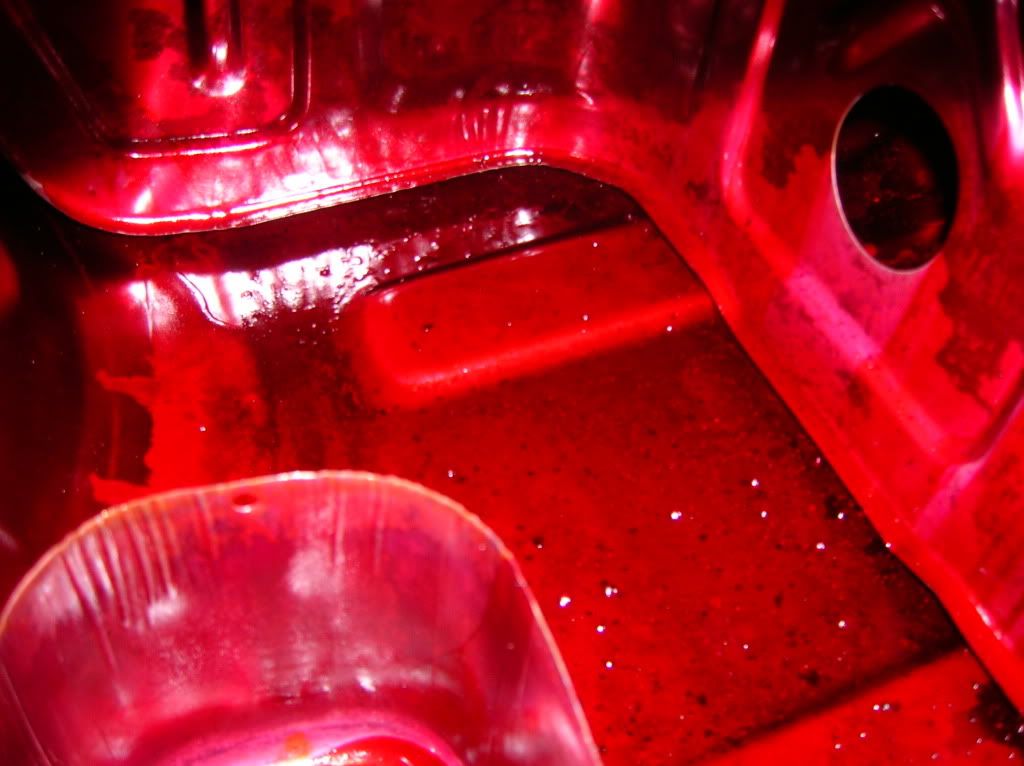

I know it still looks like there is shit in there but it would not come out no matter what, so it got sealed in under the liner.

http://i151.photobucket.com/albums/s...I/DSCN5183.jpg

I also had a new clutch laying around, and I just bought all sorts of seals and gaskets, shifter return spring, pilot bearing, etc. I decided to finally tackle the project, and managed to remove the transmission from the car in about 1.5 hours once it was all jacked up and ready to go.

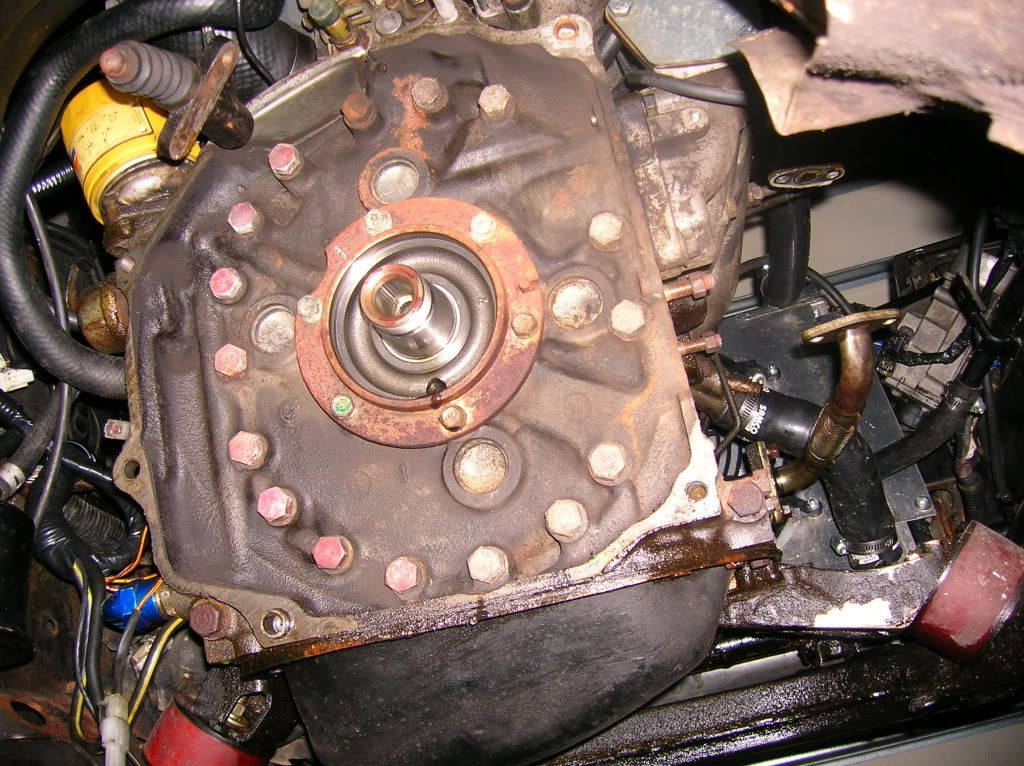

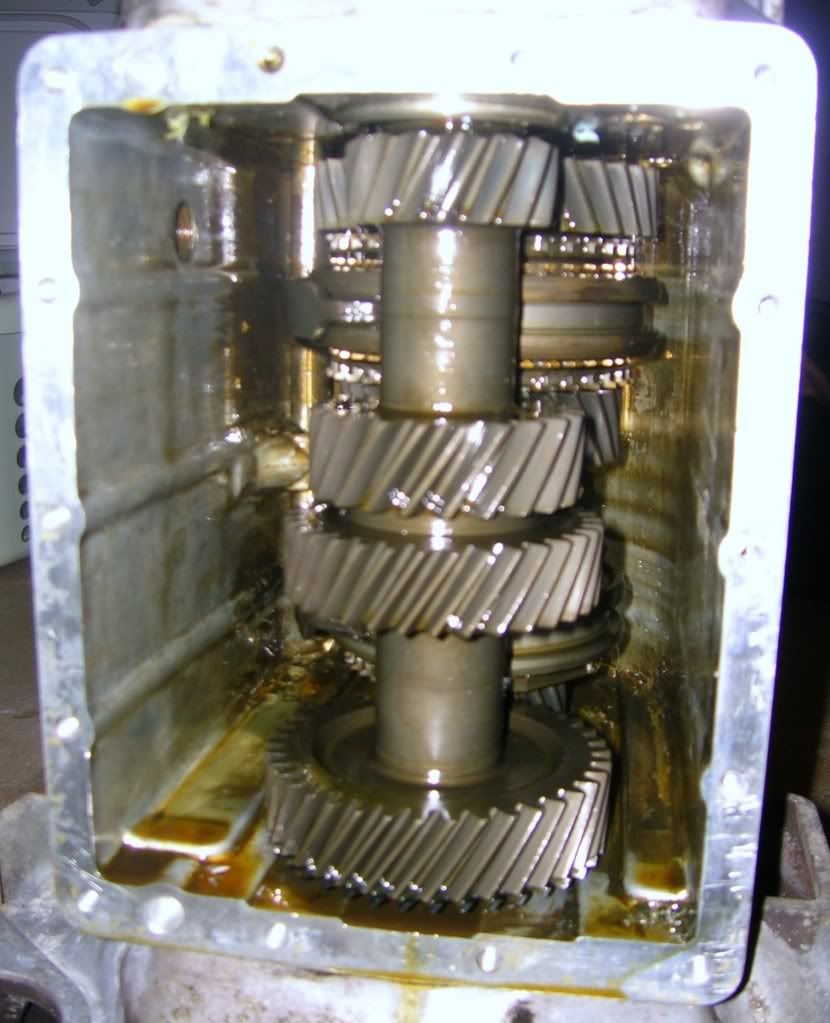

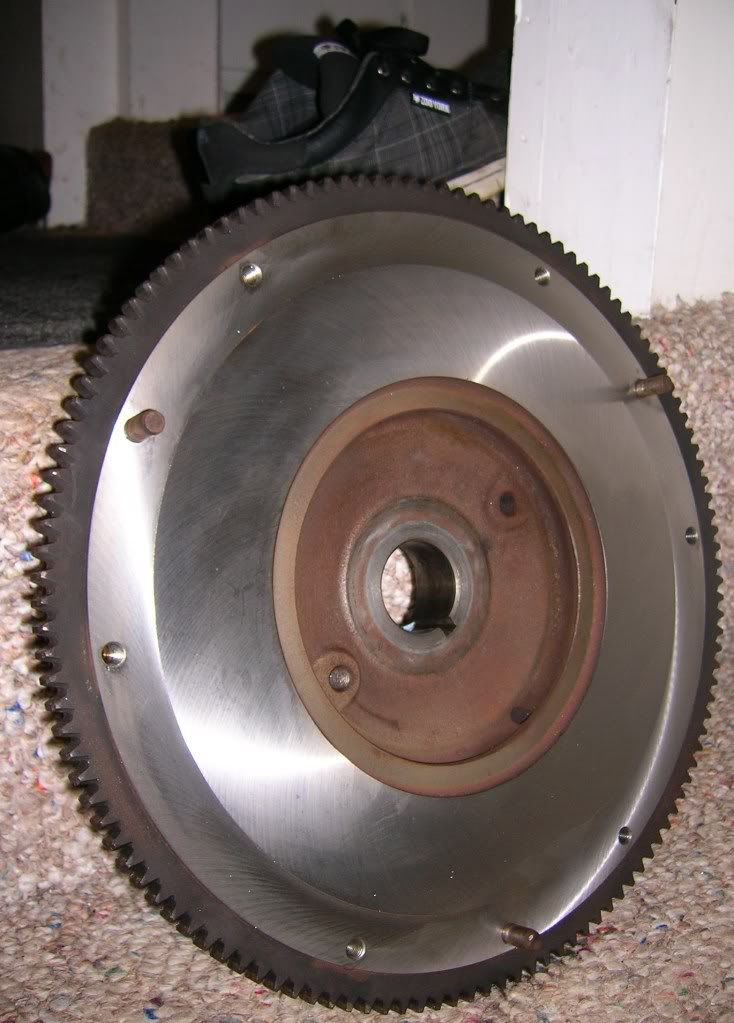

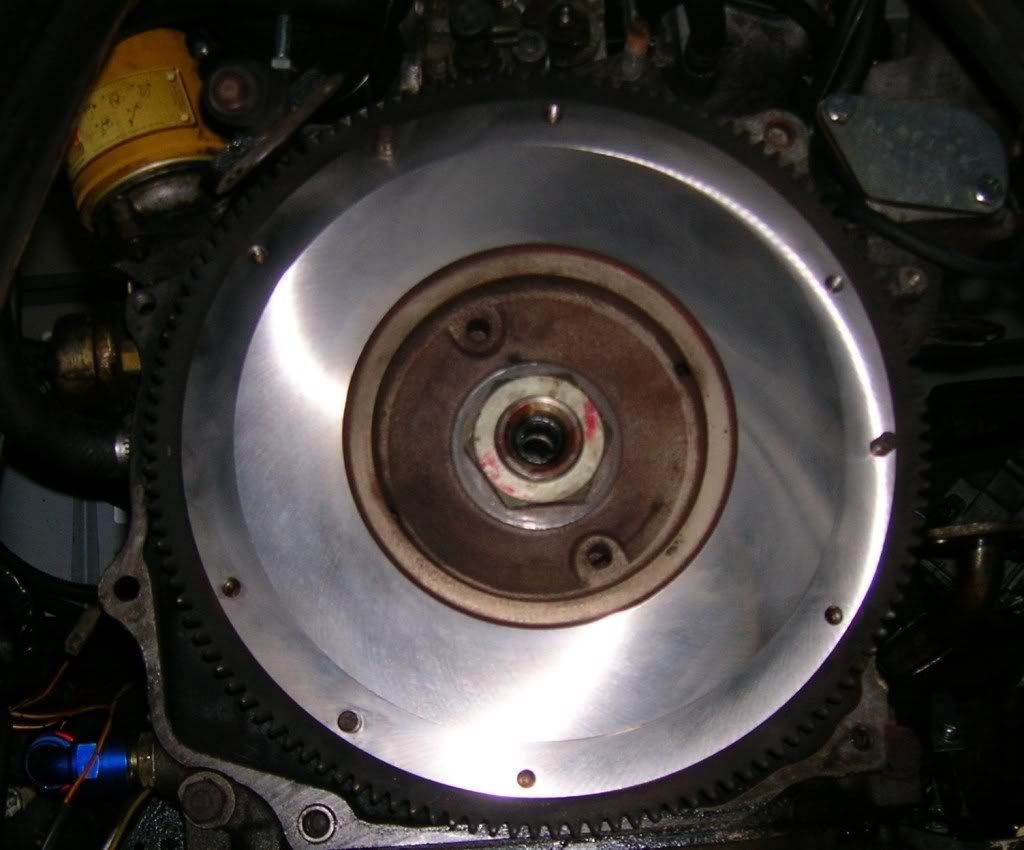

I replaced the clutch, resurfaced the flywheel, replaced pilot bearing, rear main seal, throwout bearing, rear transmission seal, transmission pan gasket, shifter return spring. I ended up having to take the transmission half way apart in order to get it all sorted out.

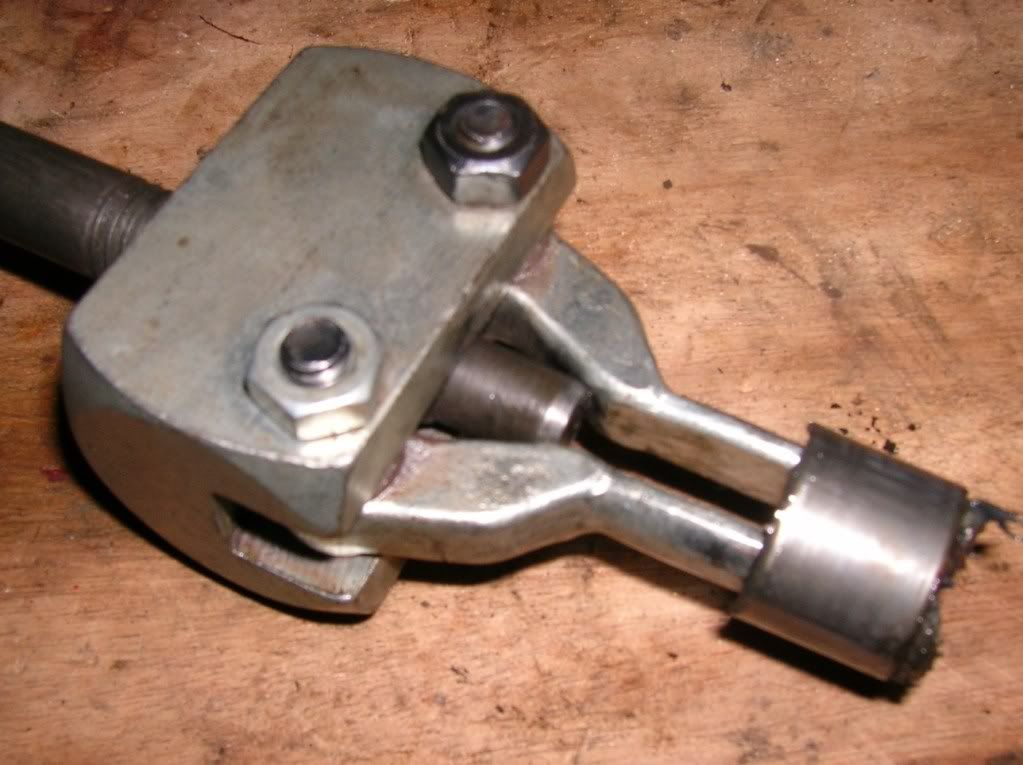

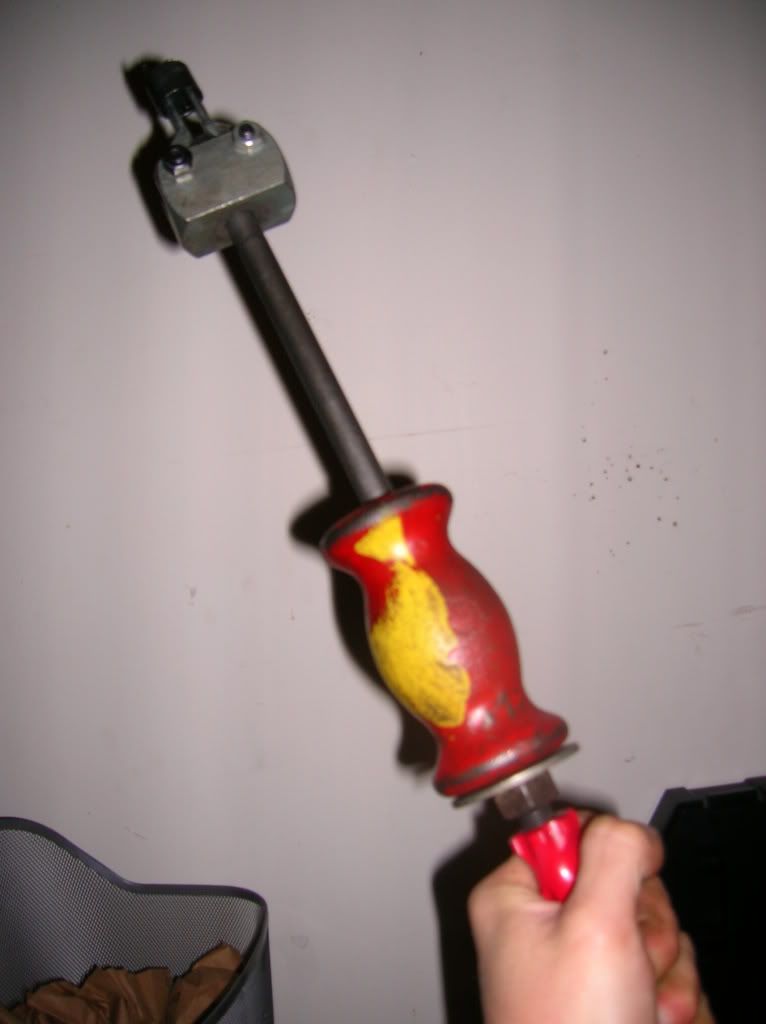

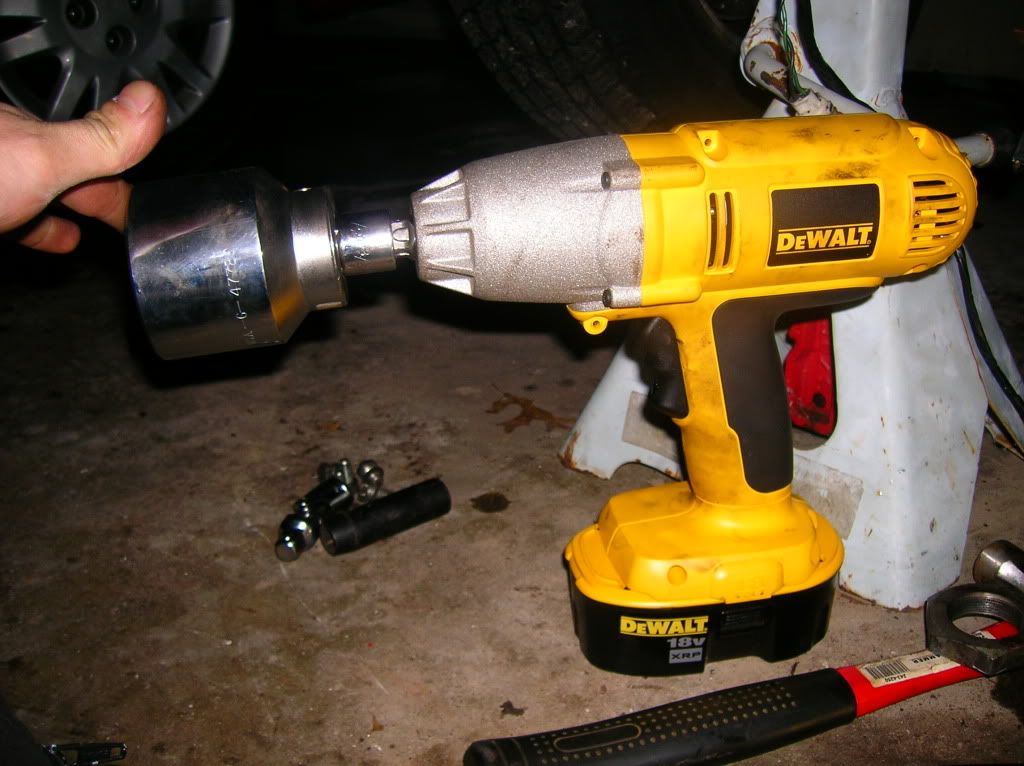

Havent gotten the trans back in yet, but otherwise it's all ready. I also got some new Stainless Steel lock washers for the clutch bolts. Really important to replace those. On the last note, as much as mazdatrix says a normal pilot bearing tool is worthless and you need to buy a rotary one, I managed to get the old pilot bearing out with a regular off the wall removal tool, not too hard, just need to know how to use it properly. :P I ALSO managed to remove my flywheel with an electric impact.... yes, electric! Seeing as it's torqued to 300lbs, and the rattle-gun took it off, I am now a firm believer in my christmas present! :D

http://i151.photobucket.com/albums/s...I/DSCN5179.jpg

http://i151.photobucket.com/albums/s...I/DSCN5181.jpg

http://i151.photobucket.com/albums/s...I/DSCN5180.jpg

http://i151.photobucket.com/albums/s...I/DSCN5177.jpg

http://i151.photobucket.com/albums/s...I/DSCN5174.jpg

http://i151.photobucket.com/albums/s...I/DSCN5175.jpg

http://i151.photobucket.com/albums/s...I/DSCN5189.jpg

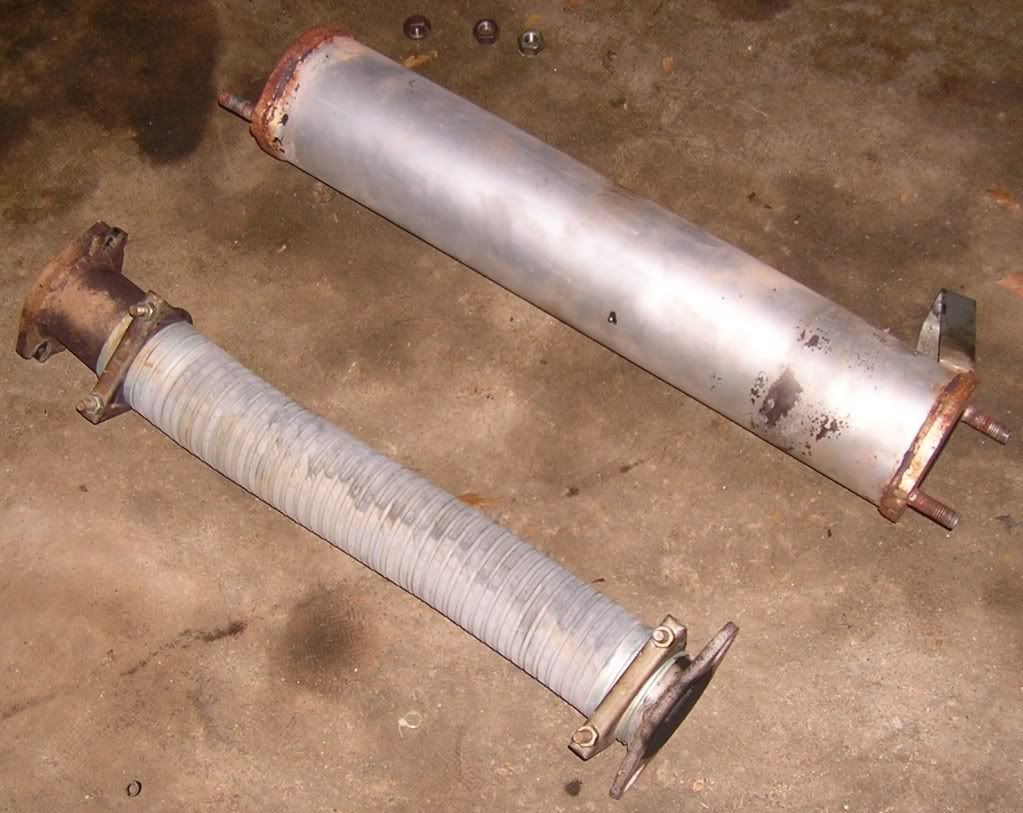

Finally replaced my ghetto ass exhaust section with an RB Silencer:

http://i151.photobucket.com/albums/s...I/DSCN5158.jpg

http://i151.photobucket.com/albums/s...I/DSCN5190.jpg

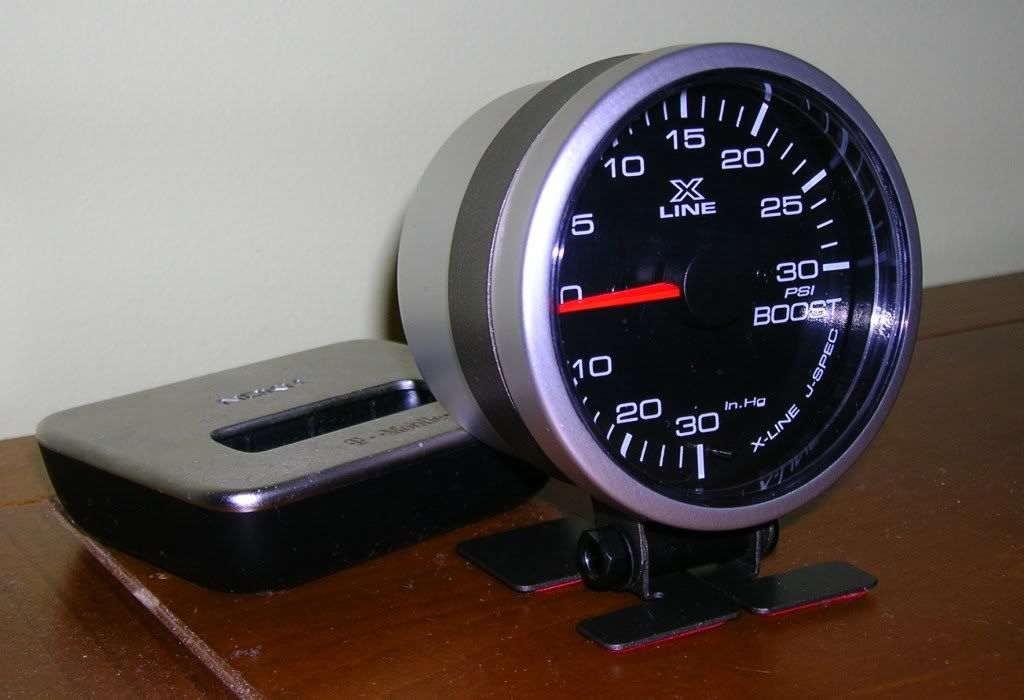

Boost Gauge:

http://i151.photobucket.com/albums/s...I/DSCN5156.jpg

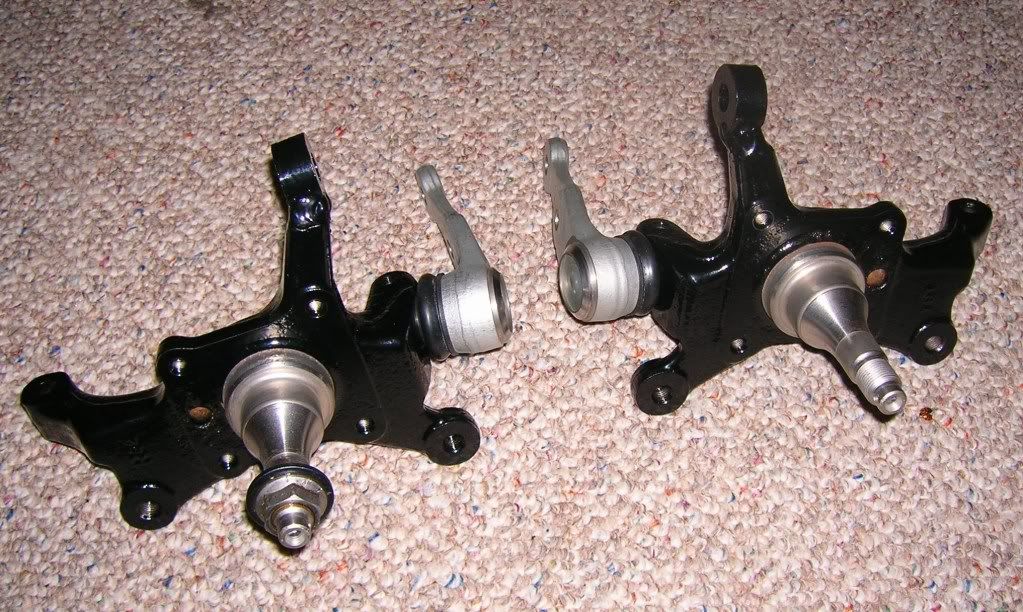

Some modded spindles, and brand new oem Mazda ball joints! @ $50 each, I love the dealership employee discount! :D They will be going on when I get a poly bushing kit.

http://i151.photobucket.com/albums/s...I/DSCN5164.jpg

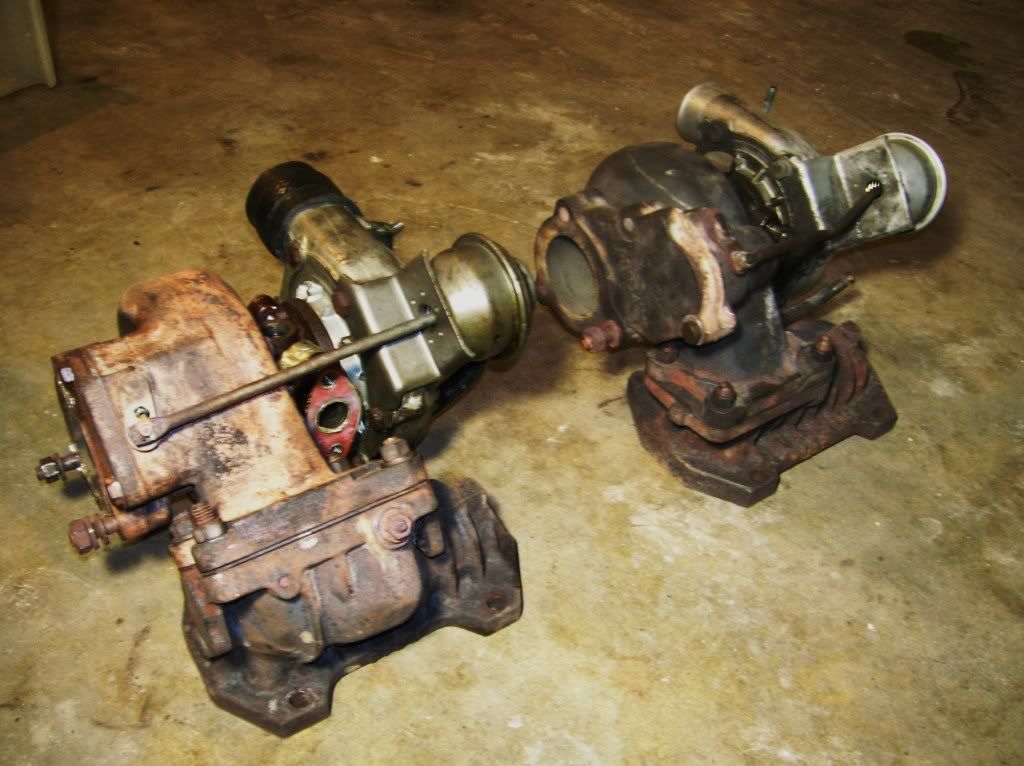

I sold my S4 turbo, and got an S5 unit as part of the exchange for my old vert shell. Here's the differences in the manifolds between the series, the S4 has a flapper twin scroll (deleted) and the S5 mani has a full twin scroll setup.

http://i151.photobucket.com/albums/s...I/DSCN5170.jpg

Nice :icon_tup:. I'm jealous of all your shiny new parts :302:.
